| Brand Name: | GoreLink |
| MOQ: | 1000m |
| Delivery Time: | As per the order quantity |
| Payment Terms: | T/T,Paypal,Western Union, |

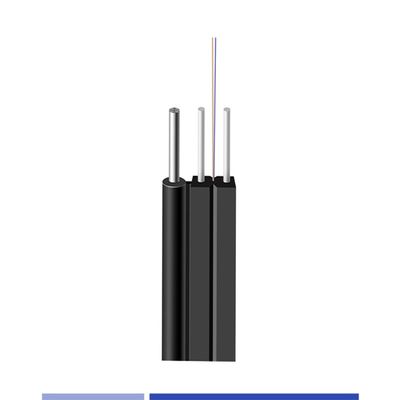

Outdoor Fiber Drop Cable, 9/125 SMF G657A1,1 Fiber, LSZH,Black
Gorelink Fiber drop cable, also known as optical drop cable, is a crucial component in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) deployments. It is designed to connect the distribution point or optical network terminal (ONT) to individual residences or businesses. This bow type drop cable comes with novel groove design, can be easily striped, and splices for simplified installation and maintenance. Its Non-metallic strength members FRP provide tensile strength without the risk of electrical interference.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
| Application | Outdoor |
Fiber Mode | Singlemode G657A1 |
| Fiber Count | 1 Fiber |
| Cable structure | Bow type |
Strength Member | 2x Steel wire |
| Messenger | Steel wire |
Cable Diameter | 2.0x3.0mm |
Outer Jacket | LSZH |
Cable Color | Black |
Cable length | As per the order request |
OPTICAL PERFORMANCE | |
Attenuation(dB/km) | ≤0.36 dB @1310nm |
Core diameter(um) | 9±2.5 |
Cladding diameter(um) | 125±1.0 |
| Wavelength | 1310nm / 1550nm |
Check the ordering information to find what you are looking for.
Please Contact Us freely if you need any help.
Download Datasheet
| Outdoor Fiber Optic Drop Cable-DC02 Series |
Ordering Information
PART NO. | DESCRIPTION |
G-DC02-701 | Outdoor Fiber Drop Cable, 9/125 SMF G657A1,1 Fiber, LSZH,Black |
G-DC02-702 | Outdoor Fiber Drop Cable, 9/125 SMF G657A1,2 Fiber, LSZH,Black |
G-DC02-704 | Outdoor Fiber Drop Cable, 9/125 SMF G657A1,4 Fiber, LSZH,Black |
G-DC02-706 | Outdoor Fiber Drop Cable, 9/125 SMF G657A1,6 Fiber, LSZH,Black |
G-DC02-712 | Outdoor Fiber Drop Cable, 9/125 SMF G657A1,2 Fiber, LSZH,Black |
* Customized | |
If you need any further questions, please feel free to contact us by sales@gorelink.com
|
|
