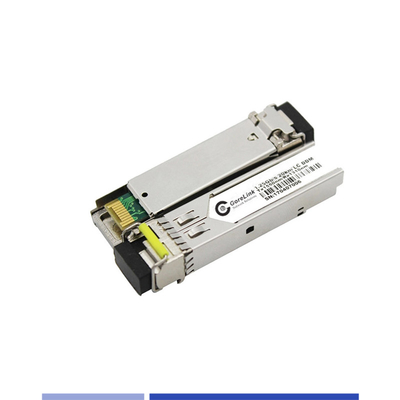

Gigabit BIDI Optical Transceiver 20km Single Fiber Singlemode SFP Module TX1310nm RX1550nm LC

Name: Gigabit BIDI Optical Transceiver 20km Single Fiber Singlemode SFP Module TX1310nm RX1550nm LC
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GSFP-1G-BX20
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GoreLink

Certification: CE,RoHS

Model Number: GSFP-1G-BX20

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Packaging Details: 10pcs/Pkt

Delivery Time: 1-3 Working days

Payment Terms: T/T, Western Union,Paypal

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Gigabit BIDI Optical Transceiver, Dual Fiber BIDI Optical Transceiver, LC Single Mode SFP Module


Product Name:	1.25G Multimode SFP Module Transceiver	Part Number:	GSFP-1G-BX20
Data Rate:	1.25Gb/s	Fiber Type:	Singlemode (SMF)
Wavelength:	1310nm,1550nm	Fiber Interface:	Simplex LC
Transmission Distance:	20KM	Power Supply:	Single 3.3V
Operating Temperature:	0°C ~ +70°C	DDM:	Supported

Product Name:	1.25G Multimode SFP Module Transceiver
Part Number:	GSFP-1G-BX20
Data Rate:	1.25Gb/s
Fiber Type:	Singlemode (SMF)
Wavelength:	1310nm,1550nm
Fiber Interface:	Simplex LC
Transmission Distance:	20KM
Power Supply:	Single 3.3V
Operating Temperature:	0°C ~ +70°C
DDM:	Supported

Description

Gigabit BIDI Optical Transceiver 20km Single Fiber Singlemode SFP Module TX1310nm RX1550nm LC

1.25G BIDI SFP Module Transceiver,1000BASE-LX, 1310nm/RX1550NM,SMF Simplex LC, 20km

This BIDI (Bi-Directional) Gigabit Optical Transceiver is a compact, cost-effective device used in optical communication networks. It allows bi-directional data transmission over a single optical fiber by using different wavelengths for upstream and downstream traffic.

Application

Telecommunication Networks
CCTV Networks
Data Center
Used in fiber-to-the-home (FTTH), fiber-to-the-building (FTTB)

Key Features

Single Fiber Communication that BIDI transceivers operate on a single fiber
Wavelength Division Multiplexing (WDM): They use WDM technology to differentiate between the transmission and reception signals by assigning them different wavelengths (e.g., 1310 nm for TX and 1550 nm for RX, or vice versa)
Compact Form Factors
Support speeds up to 1 Gbps (Gigabit Ethernet) and beyond
Hot-Pluggable that is easy to install or replace without disrupting network operations
Distance Range

General Specification

Product	1000BASE-LX SFP Module	Connector	LC Single fiber
Max Data Rate	1.25Gbps	Wavelength(nm)	1310/1550nm
Media	SMF Single fiber	Cable Distance	20km
DDM	Yes	Optical Components	VCSEL/PIN
Operation temperature	0°C to 70°C	Storage temperature	-40°C to 85°C
Application	Gigabit Ethernet,Router/Server Interface, Other Optical Link
Protocols	SFF-8472 MSA Compliant ,IEEE 802.3ah-2004,IEEE 802.3z

Gigabit BIDI Optical Transceiver 20km Single Fiber Singlemode SFP Module TX1310nm RX1550nm LC 0

Download Datasheet

1.25G 1000BASE-LX BIDI SFP Module Transceiver

Ordering Information

PART NO.	DESCRIPTION
GSFP-1G-BX20	1.25G BIDI SFP Module Transceiver,Single mode,1310nm-TX/1550nm-RX,1550nm-TX/1310nm-RX,SMF LC Simplex, 20KM
* Customized

If you have any further questions, please feel free to contact us by sales@gorelink.com
