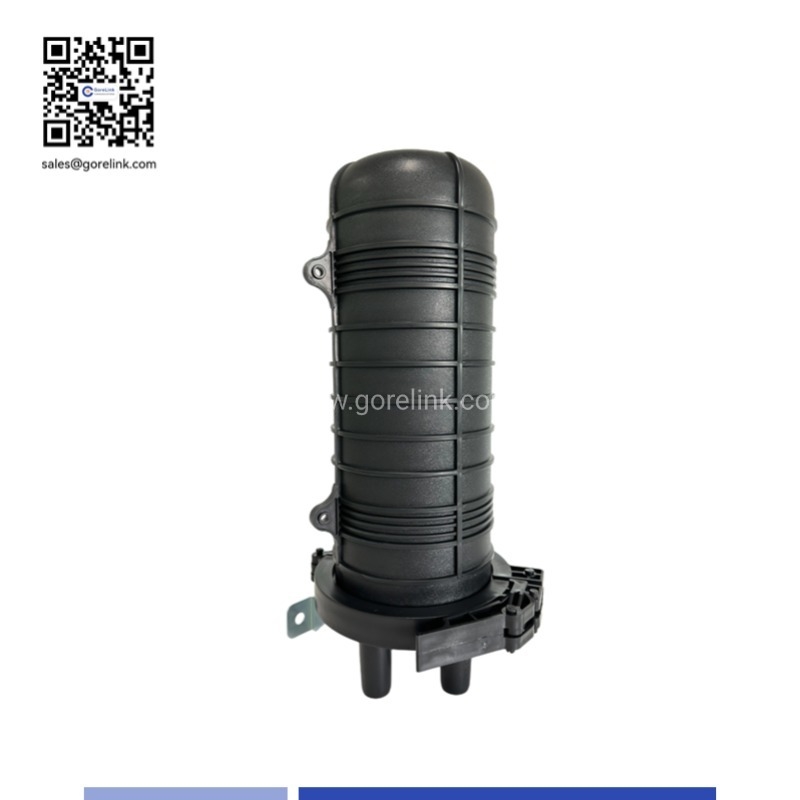

144 core Dome Fiber Optic Splice Closure UV Proof

Name: 144 core Dome Fiber Optic Splice Closure UV Proof
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-FOSC-D13144
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Neutral

Certification: CE,RoHS

Model Number: GL-FOSC-D13144

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Packaging Details: 1pcs/box

Delivery Time: 1-7 Working days

Payment Terms: T/T , Paypal , Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              144 core fiber splice closure, UV proof fiber optic closure, dome fiber splice closure


Features:	Provides Well-protected And Organized For Fiber Cable	Product Name:	Fiber Optic Splice Closure
Applications:	Outdoor,Underground	Part Number:	GL-FOSC-D13144
Capacity:	144 Fiber	Structure:	Dome Type
Material:	PP	Dimension:	Φ420mm*140mm
No. Of Port:	1 Oval+ 3 Round	Cable Diameter:	21mm-40mm
Color:	Black	Operating Temperature:	-40℃ To +70℃

Features:	Provides Well-protected And Organized For Fiber Cable
Product Name:	Fiber Optic Splice Closure
Applications:	Outdoor,Underground
Part Number:	GL-FOSC-D13144
Capacity:	144 Fiber
Structure:	Dome Type
Material:	PP
Dimension:	Φ420mm*140mm
No. Of Port:	1 Oval+ 3 Round
Cable Diameter:	21mm-40mm
Color:	Black
Operating Temperature:	-40℃ To +70℃

Description

144 core Dome Fiber Optic Splice Closure UV Proof

Fiber optic Splice closure, also known as fiber optic closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely, either in the outside plant or in indoor buildings. It can protect the fiber joint and fiber cables, as they have excellent mechanical strength and a strong outer shell, which ensures the joints are not damaged by a hostile environment.It can be pole-mounted or buried installation.

Application of Fiber Splice Closure

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification of Fiber Splice Closure

Product	Dome Fiber Optic Splice Closure
Material	Hign-density plastic
Application	Aerial,Pole,Man-hole,Underground mounting
Max. number of Tray	6
Capacity of Tray	144F
Max. Capacity	96 Fibers
Cable Entry	4 (1 oval 3 round)
Suitable Cable	φ21mm-44mm(oval port)
Sealing Way	Heat-shrinkable
Color	Black
Dimension	420×140mm
Operating Temperature (°C)	-40 ~ +70
Storage Temperature (°C)	-40 ~ +85

144 core Dome Fiber Optic Splice Closure UV Proof 0

Ordering Information

PART NO.	DESCRIPTION
GL-FOSC-D1312	Fiber Optic Splice Closure,12 fiber,Dome type
GL-FOSC-D1324	Fiber Optic Splice Closure,24 fiber,Dome type
GL-FOSC-D1348	Fiber Optic Splice Closure,48 fiber,Dome type
GL-FOSC-D1396	Fiber Optic Splice Closure,96 fiber,Dome type
GL-FOSC-D13144	Fiber Optic Splice Closure,144 fiber,Dome type
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
