| Brand Name: | GoreLink |
| MOQ: | 1000m |
| Delivery Time: | As per the order quantity |
| Payment Terms: | T/T,Paypal,Western Union, |

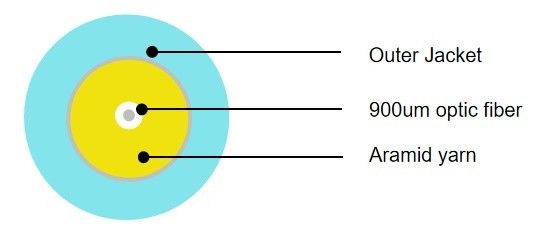

Gorelink Optical Fiber Cable is used for general indoor applications where consistency and uniformity are essential.It contains 6 fiber with aramid yarn as strength members to stiffen the cable and prevent kinking.Its durable design allows it to withstand installations and operations..
With aramid yarn as a reinforcing member, the cable is light weight, softness and easyto peel. It is widely used for data centers and indoor point to point connections, as well as used as pigtails and jumpers for communication equipment.The strands are color coded for easy identification and installation.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
Fiber Mode | Multimode OM3 50/125um |
Cable structure | 6 Fiber |
Strength Member | Aramid Yarn |
Cable Diameter | 5.0mm |
Cable Color | Aqua |
Cable Jacket | Choice of LSZH /OFNR /OFNP |
Cable length | As per the order request |
OPTICAL PERFORMANCE | |
Attenuation(dB/km) | ≤2.4 dB @850nm |
Core diameter(um) | 50±2.5 |
Cladding diameter(um) | 125±1.0 |
| Wavelength | 850nm / 1300nm |
Ordering Information
PART NO. | DESCRIPTION |
G113-302 | Indoor Distribution Fiber Optic Cable,2 Fiber, Multimode OM3 50/125um,OFNR |
G113-306 | Indoor Distribution Fiber Optic Cable,6 Fiber, Multimode OM3 50/125um,OFNR |
G113-308 | Indoor Distribution Fiber Optic Cable,8 Fiber, Multimode OM3 50/125um,OFNR |
G113-312 | Indoor Distribution Fiber Optic Cable,12 Fiber, Multimode OM3 50/125um,OFNR |
G113-324 | Indoor Distribution Fiber Optic Cable,24 Fiber, Multimode OM3 50/125um,OFNR |
* Customized | |
If you need any further assistance, please feel free to contact us at sales@gorelink.com
|
|
