12 Core Aerial Fiber Optic Cable Singlemode 9/125um with Steel Wire Messenger PE GYTC8S

Name: 12 Core Aerial Fiber Optic Cable Singlemode 9/125um with Steel Wire Messenger PE GYTC8S
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-GYTC8S-812
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GoreLink

Certification: ISO,RoHS,REACH

Model Number: GL-GYTC8S-812

Payment & Shipping Terms

Minimum Order Quantity: 1000m

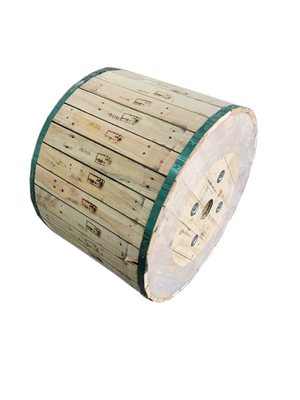

Packaging Details: Wooden Drum/Spool+Carton

Delivery Time: As per the order quantity

Payment Terms: T/T,Paypal,Western Union,

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Singlemode Aerial Fiber Optic Cable, 24 Core Aerial Fiber Optic Cable, 24 Core Overhead Fiber Optic Cable


Application:	Suitable For Duct,Aerial Laying	Part Number:	GL-GYTC8S-812
Fiber Count:	12 Cores	Fiber Type:	SM 9/125um
Armor:	Corrugated Steel Tape	Messenger:	Steel Wire
Cable Type:	Outdoor Aerial Fiber Optic Cable	Cable Construction:	Stranded Loose Tube
Fiber Code:	GYTC8S	Jacket Material:	PE

Application:	Suitable For Duct,Aerial Laying
Part Number:	GL-GYTC8S-812
Fiber Count:	12 Cores
Fiber Type:	SM 9/125um
Armor:	Corrugated Steel Tape
Messenger:	Steel Wire
Cable Type:	Outdoor Aerial Fiber Optic Cable
Cable Construction:	Stranded Loose Tube
Fiber Code:	GYTC8S
Jacket Material:	PE

Description

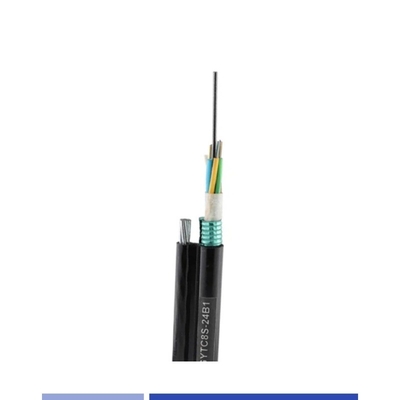

12 Core Aerial Fiber Optic Cable Singlemode 9/125um with Steel Wire Messenger PE GYTC8S

Gorelink Fiber Optic Arerial Cables are made for outdoor use along utility poles for cable television, telecom or other outside plant campus backbone applications. With the sturdy 1/4" galvanized messenger wire pre-attached to the aerial fiber optic cable, the cable is self-supported, virtually eliminating the need for the aerial fiber cable to be lashed to an external wire. This figure-eight design reduces the installation time and cost by approximately 50% when compared to separate installation of a messenger wire and the lashing of the cable to the messenger.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	12 Core

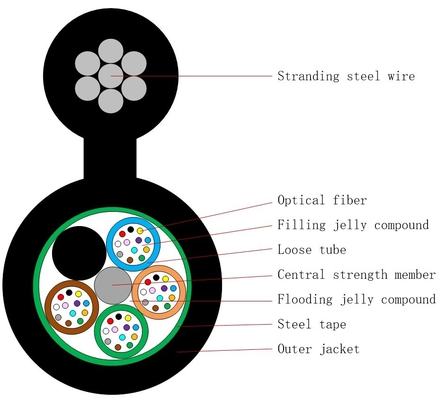

Cable structure	Stranded Loose tube
Cable Armor	Corrugated Steel Tape Armor
Central Member	Steel wire
Strength Messenger	7x 1.0mm Steel wire
Cable Diameter	9.5*16.5±0.5mm
Outer Jacket	PE
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.36 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

12 Core Aerial Fiber Optic Cable Singlemode 9/125um with Steel Wire Messenger PE GYTC8S 0

Download Datasheet

Outdoor Aerial Fiber Optic Cable- GYTC8S-Singlemode

Ordering Information

PART NO.	DESCRIPTION
GL-GYTC8S-802	Outdoor Aerial Fiber Optic Cable, 2 Fiber, Singlemode G652D, PE, Black, GYTC8S
GL-GYTC8S-806	Outdoor Aerial Fiber Optic Cable, 6 Fiber, Singlemode G652D, PE, Black, GYTC8S
GL-GYTC8S-808	Outdoor Aerial Fiber Optic Cable, 8 Fiber, Singlemode G652D, PE, Black, GYTC8S
GL-GYTC8S-812	Outdoor Aerial Fiber Optic Cable,12 Fiber, Singlemode G652D, PE, Black, GYTC8S
GL-GYTC8S-824	Outdoor Aerial Fiber Optic Cable, 24 Fiber, Singlemode G652D, PE, Black, GYTC8S
* Customized
