24 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE

Name: 24 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-ADSS/D10-824
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GoreLink

Certification: ISO,RoHS,REACH

Model Number: GL-ADSS/D10-824

Payment & Shipping Terms

Minimum Order Quantity: 1000m

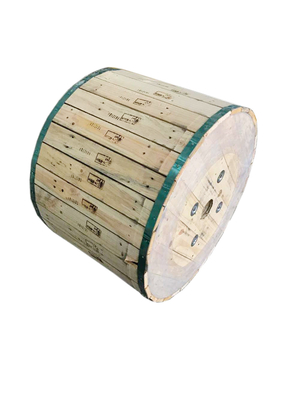

Packaging Details: Wooden Drum/Spool+Carton

Delivery Time: As per the order quantity

Payment Terms: T/T,Paypal,Western Union,

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Singlemode ADSS Fiber Optic Cable, Double Jacket ADSS Fiber Optic Cable, Double Jacket Armoured Outdoor Cable


Features:	Light Weight & Reduced-Diameter	Application:	Outdoor Aerial Cable
Suitable For:	Duct, Aerial Laying	Part No.:	GL-ADSS/D10-824
Fiber Mode:	Singlemode 9/125um	Fiber Count:	24 Core
Max. Capacity:	Up To 96 Cores	Design:	Central Loose Tube Design
Armor:	No	Inner Jacket:	PE
Strength Memeber:	Aramid Yarn	Outer Jacket:	PE
Span:	100m

Features:	Light Weight & Reduced-Diameter
Application:	Outdoor Aerial Cable
Suitable For:	Duct, Aerial Laying
Part No.:	GL-ADSS/D10-824
Fiber Mode:	Singlemode 9/125um
Fiber Count:	24 Core
Max. Capacity:	Up To 96 Cores
Design:	Central Loose Tube Design
Armor:	No
Inner Jacket:	PE
Strength Memeber:	Aramid Yarn
Outer Jacket:	PE
Span:	100m

Description

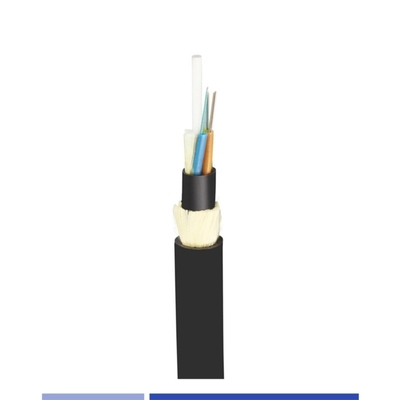

24 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE

Gorelink ADSS (All-dielectric Self-supporting) cable is designed for aerial installation and deployment, which is suitable for various outdoor applications. This comprehensive introduction will cover the definition, structure, advantages, and applications of ADSS cables.

It is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	24 Core
Cable structure	Double inner jacket with Stranded Loose tube
Cable Armor	Non-metallic
Strength Member	Aramid yarn+FRP
Inner Jacket	PE
Outer Jacket	PE
Cable Color	Black
Span	100m
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.35 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

24 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE 0

Check the ordering information to find what you are looking for.

Please Contact Us freely if you need any help.

Download Datasheet

Outdoor ADSS Fiber Optic Cable- Singlemode-Double jacket

Ordering Information

PART NO.	DESCRIPTION
GL-ADSS/D10-812	Outdoor ADSS Fiber Optic Cable,12 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m
GL-ADSS/D10-824	Outdoor ADSS Fiber Optic Cable,24 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m
GL-ADSS/D10-848	Outdoor ADSS Fiber Optic Cable,48 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m
GL-ADSS/D10-896	Outdoor ADSS Fiber Optic Cable,96 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com
