12 Fiber Indoor Flat Drop Cable Multimode OM3 50/125um LSZH Black

Name: 12 Fiber Indoor Flat Drop Cable Multimode OM3 50/125um LSZH Black
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-FDC-
Availability: InStock

Brand Name:	GoreLink
Model Number:	GL-FDC-
MOQ:	1000m
Delivery Time:	As per the order quantity
Payment Terms:	T/T,Paypal,Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ISO,RoHS,REACH

Features:

Suitable For FTTH/FTTP Deployment

Application:

Indoor

Product Name:

Flat Drop Cable

Part Number:

GL-FDC-312

Fiber Type:

Multimode OM3

Fiber Count:

12 Fiber

Jacket Material:

LSZH

Color:

Black

Packaging Details:

Wooden Drum/Spool+Carton

Highlight:

Indoor Flat Drop Cable

Multimode OM3 Flat Drop Cable

Multimode OM3 Aerial Drop Wire

Product Description

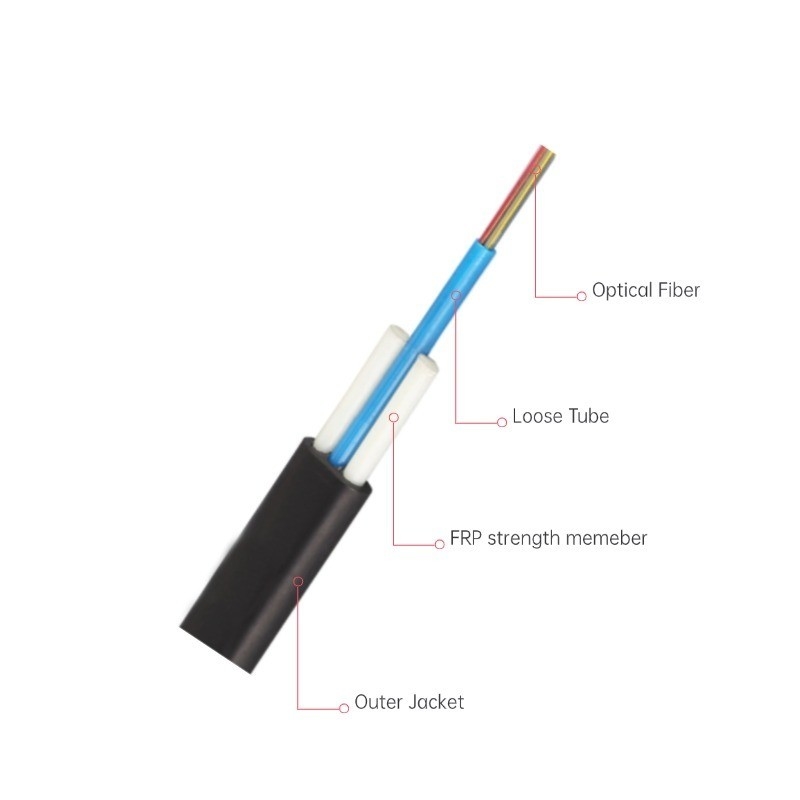

Gorelink Fiber Flat drop cable, also known as optical drop cable, is a crucial component in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) deployments. It is designed to connect the distribution point or optical network terminal (ONT) to individual residences or businesses. This bow-type drop cable features a novel groove design, allowing for easy stripping and splicing, for simplified installation and maintenance. Its Non-metallic strength members, FRP provide tensile strength without the risk of electrical interference.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Multimode OM3
Fiber Count	12 Core

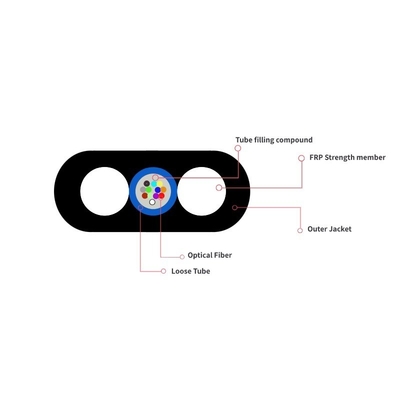

Cable structure	Flat type
Strength Member	2xFRP
Cable Diameter	6.5*8.5mm
Cable Jacket	LSZH
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	850nm≤3.0dB 1300nm ≤1.0dB
Core diameter(um)	50±2.5
Cladding diameter(um)	125±1.0
Wavelength	850nm / 1300nm
Operating Temperature	-20~75℃
Storage Temperature	-40~80℃

12 Fiber Indoor Flat Drop Cable Multimode OM3 50/125um LSZH Black 0

Download Datasheet

Indoor Fiber Optic Flat Drop Cable Multimode OM3- FDC Series

Ordering Information

PART NO.	DESCRIPTION
GL-FDC-301	Flat Type Indoor Fiber Drop Cable, OM3 50/125,1 Fiber, LSZH,Black
GL-FDC-302	Flat Type Indoor Fiber Drop Cable, OM3 50/125,2 Fiber, LSZH,Black
GL-FDC-306	Flat Type Indoor Fiber Drop Cable, OM3 50/125,6 Fiber, LSZH,Black
GL-FDC-312	Flat Type Indoor Fiber Drop Cable, OM3 50/125,12 Fiber, LSZH,Black
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
