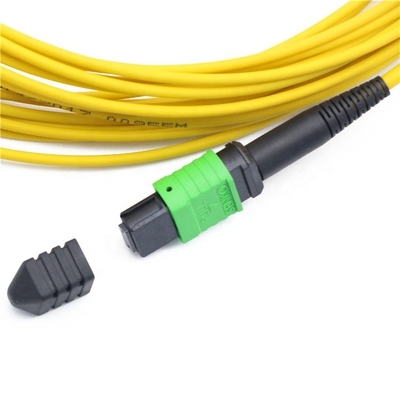

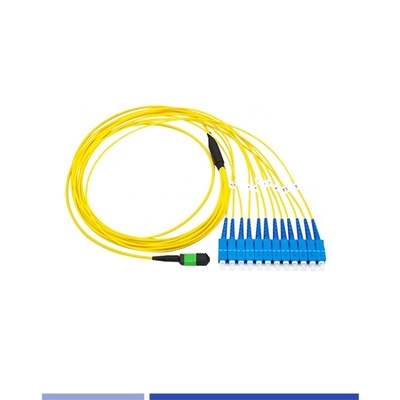

12 Core Singlemode OS2 MTP® Fibre Patch Cable Female To SC Simplex 3m LSZH

Name: 12 Core Singlemode OS2 MTP® Fibre Patch Cable Female To SC Simplex 3m LSZH
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G278-L1712-5
Availability: InStock

Brand Name:	GoreLink
Model Number:	G278-L1712-5
MOQ:	1 Piece
Delivery Time:	1-3 Working days
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS,REACH

Features:

High-speed Signal Transmission

Product:

MTP® Trunk Cable

Part Number:

G278-L1712-5

Application:

FTTH FTTB FTTX Network

Fiber Count:

12 Fiber

Connector:

MTP®-12 (Female)

Connector B:

SC Simplex

Fiber Type:

Singlemode G652D

Length:

Jacket:

LSZH

Diameter:

3.0mm

Insertion Loss:

≤0.75dB

Return Loss:

≥30dB

Wavelength:

850nm,1310nm

Packaging Details:

Neutral Bag/GoreLink Bag

Highlight:

Female To SC Fibre Patch Leads

Singlemode OS2 Fibre Patch Leads

Singlemode OS2 Fiber Optic Patch Cable

Product Description

This Trunk cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles with a cost-effective alternative to time-consuming field termination.These high speed Singlemode 9/125 OM3 Polarity B Type fiber cables are terminated with MTP® Female fiber optic connectors on both ends (MTP-MTP).The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Singlemode 9/125um
Fiber Count	12 Fibers
Connector A	MTP®-12 Female
Connector B	12 x SC/UPC Simplex
Wavelength	1310nm/1550nm
Polish Way	APC
Cable Diameter	3.0mm
Connector Color	Green(MTP) Blue/Blue(SC)
Cable Color	Yellow
Cable Jacket	LSZH
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/KM)	≤0.36dB/km
Insertion Loss(IL)	≤0.75 dB (Standard loss)
Return Loss(RL)	≥60dB
Operating Temperature	-10 to +70℃
Storage Temperature	0 to +60℃

Ordering Information

PART NO.	DESCRIPTION
G278-L1712-1	Fiber Optic Cable,12Core,MTP/Female to SC/UPC Simplex, SM 9/125,OS2, LSZH, Yellow,1Mtr,3.0mm
G278-L1712-2	Fiber Optic Cable,12Core,MTP/Female to SC/UPC Simplex, SM 9/125,OS2, LSZH, Yellow,2Mtr,3.0mm
G278-L1712-3	Fiber Optic Cable,12Core,MTP/Female to SC/UPC Simplex, SM 9/125,OS2, LSZH, Yellow,3Mtr,3.0mm
G278-L1712-5	Fiber Optic Cable,12Core,MTP/Female to SC/UPC Simplex, SM 9/125,OS2, LSZH, Yellow,5Mtr,3.0mm
G278-L1712-10	Fiber Optic Cable,12Core,MTP/Female to SC/UPC Simplex, SM 9/125,OS2, LSZH, Yellow,10Mtr,3.0mm
G278-L1712-15	Fiber Optic Cable,12Core,MTP/Female to SC/UPC Simplex, SM 9/125,OS2, LSZH, Yellow,15Mtr,3.0mm
* Customized

If you need any more help, please feel free to contact us at sales@gorelink.com .
