8 Core OM3 MTP® to LC Fiber Optic Trunk Cable Female Plenum Patch Cord 5m for high density data center

Name: 8 Core OM3 MTP® to LC Fiber Optic Trunk Cable Female Plenum Patch Cord 5m for high density data center
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G273-P3608-5
Availability: InStock

Brand Name:	GoreLink
Model Number:	G273-P3608-5
MOQ:	1 Piece
Delivery Time:	1-3 Working days
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

RoHS,REACH

Product:

MTP-LC Fiber Breakout Cable

Application:

FTTH FTTB FTTX Network,Data Center

Part No.:

G273-P3608-5

Fiber Count:

8 Core

Connector:

MTP®/PC Female-LC/UPC

Fiber Mode:

Multimode OM3

Jacket:

OFNP

Length:

Diameter:

3.0mm

Insertion Loss:

≤0.35dB

Return Loss:

≥30dB

Wavelength:

850nm,1300nm

Color:

Aqua

Packaging Details:

Neutral Bag/GoreLink Bag

Product Description

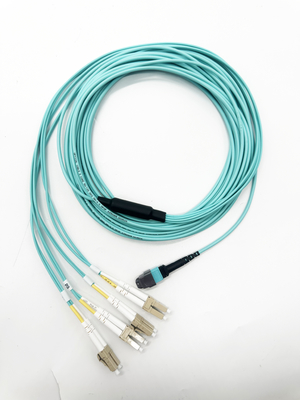

8 Fibers MTP-12 (Female)-LC Trunk Cable, Multimode OM3, 1m, Aqua

MTP Fiber Cable is designed for high-density fiber patching in data centers which need space-saving

and reduce cable management troubles with a cost-effective alternative to time-consuming field termination. These high-speed Multimode 50/125 OM3 Polarity B Type fiber cables are terminated with MTP Female fiber optic connectors on both ends (MTP-MTP). The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Multimode OM3 50/125um
Fiber Count	8 Fibers
Connector A	MTP-12 Female
Connector B	LC/UPC Duplex
Wavelength	850nm/1300nm
Polish Way	UPC
Cable Diameter	3.0mm
Cable Color	Aqua
Cable Jacket	OFNP
Method	Key-up
Cable length	As per the order request
OPTICAL PERFORMANCE
Insertion Loss(IL)	≤0.35 dB (Low loss)
Return Loss(RL)	≥30dB
40/100G Ethernet Distance	150m @850nm
10G Ethernet Distance	400m @850nm
Operating Temperature	-10 to +70℃
Storage Temperature	0 to +60℃

8 Core OM3 MTP® to LC Fiber Optic Trunk Cable Female Plenum Patch Cord 5m for high density data center 0

Ordering Information

PART NO.	DESCRIPTION
G273-P3608-1	Fiber Optic Cable,12Core,MTP/Female to LC Simplex, MM-50/125,OM3, OFNP, Aqua,1Mtr,3.0mm
G273-P3608-2	Fiber Optic Cable,12Core,MTP/Female to LC Simplex, MM-50/125,OM3, OFNP, Aqua,2Mtr,3.0mm
G273-P3608-3	Fiber Optic Cable,12Core,MTP/Female to LC Simplex, MM-50/125,OM3, OFNP, Aqua, 3Mtr,3.0mm
G273-P3608-5	Fiber Optic Cable,12Core,MTP/Female to LC Simplex, MM-50/125,OM3, OFNP, Aqua,5Mtr,3.0mm
G273-P3608-7	Fiber Optic Cable,12Core,MTP/Female to LC Simplex, MM-50/125,OM3, OFNP, Aqua,7Mtr,3.0mm
G273-P3608-10	Fiber Optic Cable,12Core,MTP/Female to LC Simplex, MM-50/125,OM3, OFNP, Aqua,10Mtr,3.0mm
* Customized

If you need any more help, please feel free to contact us at sales@gorelink.com .
