| Brand Name: | GoreLink |
| Model Number: | G273-P324-3 |
| MOQ: | 1 Piece |
| Delivery Time: | 1-3 Working days |
| Payment Terms: | T/T,Paypal,Western Union |

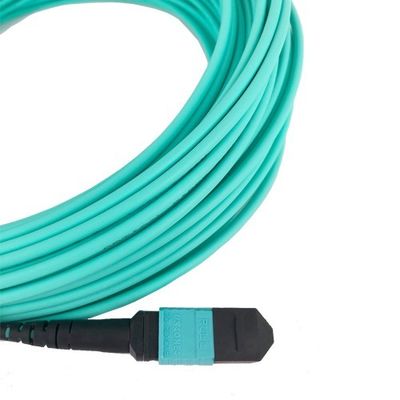

MTP®Trunk cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles with a cost-effective alternative to time-consuming field termination.These high speed Single-Mode 9/125 OS2 Polarity B Type fiber cables are terminated with MTP®; Female fiber optic connectors on both ends (MTP-MTP).The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Fiber Mode |
Multimode OM3 50/125um |
|
Fiber Count |
24 Fibers |
|
Connector A |
MTP®-12 Female x2 |
|
Connector B |
MTP®-12 Female x2 |
|
Wavelength |
850nm/1300nm |
|
Polish Way |
PC |
|
Cable Diameter |
3.0mm |
|
Cable Color |
Aqua |
|
Cable Jacket |
LSZH |
|
Method |
Type A |
|
Cable length |
As per the order request |
|
OPTICAL PERFORMANCE |
|
|
Insertion Loss(IL) |
≤0.35 dB |
|
Return Loss(RL) |
≥30dB |
|
40/100G Ethernet Distance |
150m @850nm |
|
10G Ethernet Distance |
400m @850nm |
|
Operating Temperature |
-10 to +70°C |
|
Storage Temperature |
0 to +60°C |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
G273-L324-1 |
24 Fibers MTP® Female-MTP® Female OM3 Fiber Optic Harnness cable,1m,LSZH,Type B |
|
G273-L324-3 |
24 Fibers MTP® Female-MTP® Female OM3 Fiber Optic Harnness cable,3m,LSZH,Type B |
|
G273-L324-5 |
24 Fibers MTP® Female-MTP® Female OM3 Fiber Optic Harnness cable,5m,LSZH,Type B |
|
G273-L324-10 |
24 Fibers MTP® Female-MTP® Female OM3 Fiber Optic Harnness cable,10m,LSZH,Type B |
|
G273-L324-15 |
24 Fibers MTP® Female-MTP® Female OM3 Fiber Optic Harnness cable,15m,LSZH,Type B |
|
G273-L324-20 |
24 Fibers MTP® Female-MTP® Female OM3 Fiber Optic Harnness cable,20m,LSZH,Type B |
|
* Customized |
|
If you need any more help, please feel free to contact us at sales@gorelink.com .
|
|
