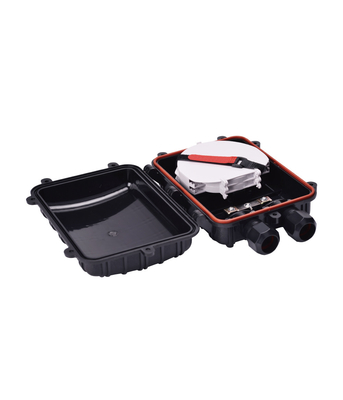

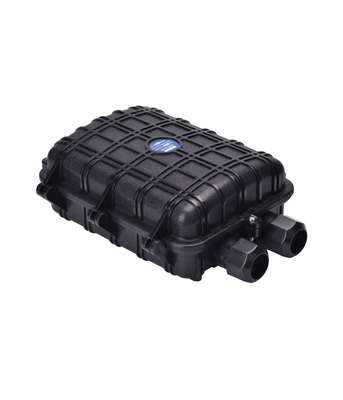

24 Fiber Mini Type Fiber Optic Splice Case Fiber Cable Joint Cosure horizontal with Waterproof

Name: 24 Fiber Mini Type Fiber Optic Splice Case Fiber Cable Joint Cosure horizontal with Waterproof
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-FOSC-M01-24
Availability: InStock

Brand Name:	GoreLink
Model Number:	GL-FOSC-M01-24
MOQ:	Negotiable
Delivery Time:	1-7 Working days
Payment Terms:	T/T , Paypal , Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Product Name:

Fiber Optic Splice Closure

Application:

FTTH FTTB FTTX Network

Part Number:

GL-FOSC-M01-24

Suitable For:

Aerial,Pipeline,Underground,hand-holes

Material:

High-density Engineering Plastic

Max. Capacity:

Up To 144F

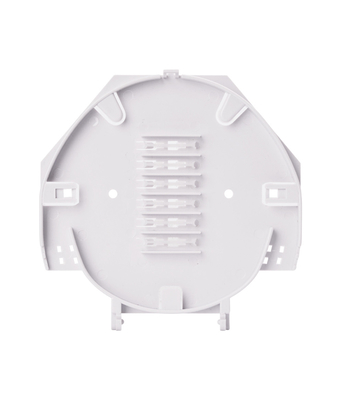

Splice Tray:

24 Fiber

Design:

Mini Type

Cable:

Straight-through Fiber,branch Fiber

Number Of Inlet/out Ports:

1 In 1 Out

Cable Diameter:

7-14 (mm)

Color:

Black

Size:

280mm*200*90mm

Operating Temperature:

-40℃ To +70℃

Packaging Details:

1pcs/box

Highlight:

Mini Fiber Optic Splice Case

24 Fiber Fiber Optic Splice Case

96F Capacity Splice Case Fiber

Product Description

Gorelink Fiber Optic Splice Closure is used for direct connection during optical fiber transmission and provides joint connection protection. Its mechanical-sealing design can be used for aerial, underground,manhole, wall and buried installations.

With good sealing performance, the simple installation and wide application range are the best choice for optical fiber connections.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Product	Horizontal Mini Fiber Optic Splice Closure
Max. Capacity	96core , 144 cores(Ribbon cable)
Material	High density PC
Closure type	Mini Horizontal type
No. of cable In /Out	2
Max. cable in Diameter	φ7mm～φ14mm
No. of Trays	24F
Dimension(D*H)	280mm20090mm
Application	Aerial,Pipeline,Underground,hand-holes
IP Level	IP68
Sealing way	Mechanical seal

24 Fiber Mini Type Fiber Optic Splice Case Fiber Cable Joint Cosure horizontal with Waterproof 0

Download Datasheet

Fiber Optic Splice Closure-Mini type-GL-FOSC-M01 Series

Ordering Information

PART NO.	DESCRIPTION
GL-FOSC-M01-12	Fiber Optic Splice Closure,12 fiber,Mini Horizontal type
GL-FOSC-M01-24	Fiber Optic Splice Closure,24 fiber,Mini Horizontal type
GL-FOSC-M01-48	Fiber Optic Splice Closure,48 fiber,Mini Horizontal type
GL-FOSC-M01-96	Fiber Optic Splice Closure,96 fiber,Mini Horizontal type
* Customized

If you need any further questions, please feel free to contact us by sales@gorelink.com
