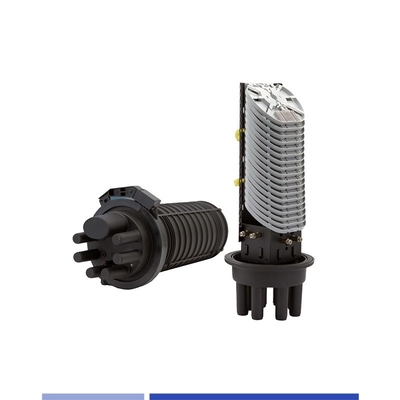

288 core Dome Fiber Optic Splice Closure 288F Capacity Fiber Dome Enclosure UV Proof

Name: 288 core Dome Fiber Optic Splice Closure 288F Capacity Fiber Dome Enclosure UV Proof
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-FOSC-D03-288
Availability: InStock

Brand Name:	Neutral
Model Number:	GL-FOSC-D03-288
MOQ:	Negotiable
Delivery Time:	1-7 Working days
Payment Terms:	T/T , Paypal , Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Features:

Provides Well-protected And Organized For Fiber Cable

Product Name:

Fiber Optic Splice Closure

Applications:

Outdoor,Underground

Part Number:

GL-FOSC-D03-288

Max. Capacity:

288 Fiber

Type:

Dome

Material:

Color:

Black

Diameter Of Fiber Cable:

7mm-24mm

Dimension:

230 X 440 D*H(mm)

Operating Temperature:

-40℃ To +70℃

Packaging Details:

1pcs/box

Highlight:

UV Proof Fiber Splice Closure

288F Capacity Fiber Splice Closure

288F Capacity Fiber Dome Enclosure

Product Description

Fiber optic closure, also known as fiber optic splice closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely, either in the outside plant or in indoor buildings. It can protect the fiber joint and fiber cables, as they have excellent mechanical strength and a strong outer shell, which ensures the joints are not damaged by a hostile environment.It can be pole-mounted or buried installation.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Product	Dome Fiber Optic Splice Closure
Material	Hign-density plastic
Application	Aerial,Pole,Man-hole,Underground mounting
Max. number of Tray	18
Capacity of Tray	16F
Max. Capacity	288 Fibers
Cable Entry	8 (1 oval 7 round)
Suitable Cable	φ7mm-24mm(oval port)
Sealing Way	Heat-shrinkable
Color	Black
Dimension	Φ230×440mm
Operating Temperature (°C)	-40 ~ +70
Storage Temperature (°C)	-40 ~ +85

288 core Dome Fiber Optic Splice Closure 288F Capacity Fiber Dome Enclosure UV Proof 0

Download Datasheet

Dome Fiber Optic Splice Closure - GL-FOSC-D03 Series

Ordering Information

PART NO.	DESCRIPTION
GL-FOSC-D03-24	Fiber Optic Splice Closure,24 fiber,Dome type
GL-FOSC-D03-48	Fiber Optic Splice Closure,48 fiber,Dome type
GL-FOSC-D03-96	Fiber Optic Splice Closure,96 fiber,Dome type
GL-FOSC-D03-144	Fiber Optic Splice Closure,144 fiber,Dome type
GL-FOSC-D03-192	Fiber Optic Splice Closure,192 fiber,Dome type
GL-FOSC-D03-288	Fiber Optic Splice Closure,288 fiber,Dome type
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
