| Brand Name: | GoreLink |
| Model Number: | GSFP-1G-LX20 |
| MOQ: | 1pc |
| Delivery Time: | 1-3 Working days |
| Payment Terms: | T/T, Western Union,Paypal |

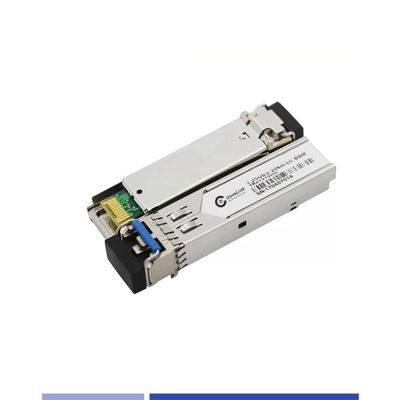

1.25G Singlemode SFP Module Transceiver,1000BASE-LX, 1310nm,SMF Duplex LC, 20KM
The 1000BASE-LX 1G SFP (Small Form-factor Pluggable) modules, also known as Gigabit SFP transceivers, are widely used for gigabit Ethernet and fiber optic networking applications.This SFP transceiver supports up to 20km link lengths over Single-Mode fiber (SMF) using a wavelength of 1310nm via an LC connector.
It fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on MSA compliant SFP ports of optical networking equipment. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Application
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Product |
1000BASE-LX SFP Module |
Connector |
LC Duplex |
|
Max Data Rate |
1.25Gbps |
Wavelength(nm) |
1310nm |
|
Media |
SMF |
Cable Distance |
20KM |
|
DDM |
Yes |
Optical Components |
VCSEL/PIN |
|
Operation temperature |
0°C to 70°C |
Storage temperature |
-40°C to 85°C |
|
Application |
Gigabit Ethernet,Router/Server Interface, Other Optical Link |
||
|
Protocols |
SFF-8472 MSA Compliant ,IEEE 802.3ah-2004,IEEE 802.3z |
||
Ordering Information
|
PART NO. |
DESCRIPTION |
|
GSFP-1G-LX10 |
1.25G Singlemode SFP Module Transceiver,1000BASE-LX,1310nm,SMF Duplex LC, 10KM |
|
GSFP-1G-LX20 |
1.25G Singlemode SFP Module Transceiver,1000BASE-LX,1310nm,SMF Duplex LC, 20KM |
|
* Customized |
|
If you have any further questions, please feel free to contact us by sales@gorelink.com
|
|
