PVC Jacket Cat6 Network Cable 23AWG SFTP Network Cable Solid Copper 4 Pair Grey 305Mtr

Detail Information

Product Description

Detail Information

Part No.:

GC603-106

Category:

Cat6

Type:

S/FTP

AWG:

23AWG

Conductor Material:

Solid Copper

Pairs:

4 Pair

Jacket Material:

PVC

Color:

Grey

Length:

305Mtr

Frequency:

250MHz

Application:

Gigabit Ethernet

Standard:

ANSI/TIA-568-C2

Highlight:

PVC Jacket Cat6 Network Cable

23AWG Cat6 Network Cable

PVC Jacket SFTP Network Cable

Product Description

Overview Data Sheet Ordering Info

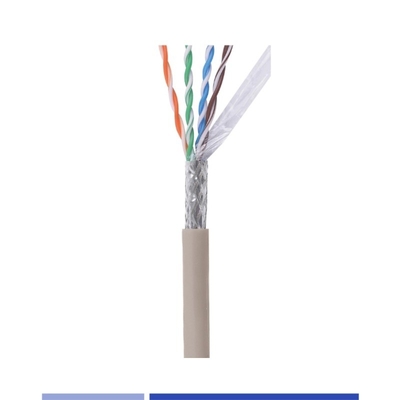

Cat6 Cable, S/FTP, 23AWG, Solid copper, 4 Pair, PVC, Grey, 305Mtr

Gorelink S/FTP (Double Shielded Twisted Pair) Category 6 is ideal for voice, data, video and security communication mediums for all your network installation requirements. The S/FTP cable have an overall braid screen (S) with foil screened twisted pairs (FTP), with an overall braided screen are very effective at protecting EMI from entering or exiting the cable. It can limit the amount of crosstalk between the cables. Protects the cable from external threats, such as electrical interference (EMI). It also prevents cable signals from interfering with surrounding cables and equipment.

Application

ATM
1Gigabit Ethernet
Data center
PoE Applications
Perfect for data center and SMB applications.
Ideal for switches, servers, patch panels, or other equipment.

General Specification

Category	Cat6
Cable Type	S/FTP
Conductor	Solid Copper
Conductor Gauge(AWG)	23AWG
Jacket	PVC
Color	Grey
Length	305m/box
Operation temperature	0 to 70°C
Storage Temperature	-40 to 85°C
Relative Humidity	5% to 95%
Technical Characteristics
Data Rate Support	1G Base-T
Standard Bandwidth (MHz)	250MHz
Impedance (Ω)	100 ± 15
Max. DC Conductor Resistance Unbalance (%)	5.0
1-250MHz, Delay Skew 20℃ (ns/100m)	≤45
Max. DC Resistance 20℃ (Ω/100m)	9.38
Before Aging Tensile Strength (Mpa)	≥13.5
After Aging Tensile Strength (Mpa)	≥12.5

PVC Jacket Cat6 Network Cable 23AWG SFTP Network Cable Solid Copper 4 Pair Grey 305Mtr 0

Check the ordering information to find what you are looking for.

Please Contact Us freely if you need any help.

Download Datasheet

S/FTP Cat6 Ethernet Cables - Cat6 Series

Ordering Information

PART NO.	DESCRIPTION
GC603-106	Gorelink SFTP CAT6 Cable,23AWG,COPPER,PVC JACKET,Grey,305m
GC602-100	Gorelink SFTP CAT6 Cable,24AWG,COPPER,PVC JACKET,Grey,305m
* Customized

If you need any further questions, please feel free to contact us by sales@gorelink.com
