| Brand Name: | GoreLink |
| Model Number: | G328-136-3 |
| MOQ: | 1pc |
| Delivery Time: | 1-3 Working days |
| Payment Terms: | T/T,Western Union,Paypal |

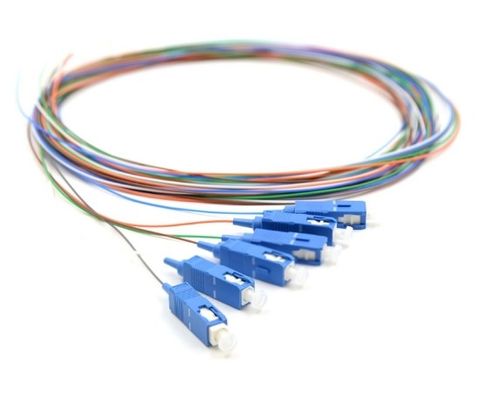

Fiber Optic Pigtail, 6 fibers SC/PC Singlemode OS2 9/125, LSZH, 3m
Gorelink Singlemode 9/125um OS2 Fiber Optic Pigtails is ideal for fusion splicing to support high speed network connections.These pigtail provide the optical performance, sturdiness, and repeatability required for modern network applications by combining quality zirconia ferrules with tough composite hardware. They are quality tested to ensure they meet or exceed industry standards while adhering to only the most stringent performance specifications.It provides a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Applications:
Telecommunications: For connecting network equipment to fiber optic systems.
Data Centers: For high-density fiber optic cabling, ensuring fast and reliable data transfer.
Fiber-to-the-Home (FTTH): Used in broadband networks to deliver internet, television, and voice services.
General Specification
Fiber Mode | Singlemode OS2 9/125um | ||
Fiber Count | 6 Fibers | ||
Strength Member | Aramid Yarn | ||
Cable Diameter | 0.9mm±0.05mm | ||
Cable Color | 6 colors | ||
| Connector | SC | ||
Polishing Way | UPC | ||
| Connector Color | Blue (SC,LC) Black (ST,FC) | ||
Cable Jacket | LSZH | ||
Cable length | As per the order request | ||
OPTICAL PERFORMANCE | |||
Parameter | Singlemode 9/125um | ||
Insertion Loss(IL) | ≤0.3 dB | ||
Return Loss(RL) | ≥50dB | ||
| Attenuation(dB/KM) | ≤0.35 dB @1310nm | ||
| Wavelength | 1310/1550nm | ||
| Operating Temperature | -10 to + 70°C | ||
| Storage Temperature | -10 to + 80°C | ||
Ordering Information
PART NO. | DESCRIPTION |
G328-136-1 | Fiber Optic Pigtail 6 Fibers SC/UPC Singlemode 9/125um, 0.9mm LSZH jacket,1m |
G328-136-2 | Fiber Optic Pigtail 6 Fibers SC/UPC Singlemode 9/125um, 0.9mm LSZH jacket,2m |
G328-136-3 | Fiber Optic Pigtail 6 Fibers SC/UPC Singlemode 9/125um, 0.9mm LSZH jacket,3m |
* Customized | |
If you need any further questions, please feel free to contact us by sales@gorelink.com
|
|
