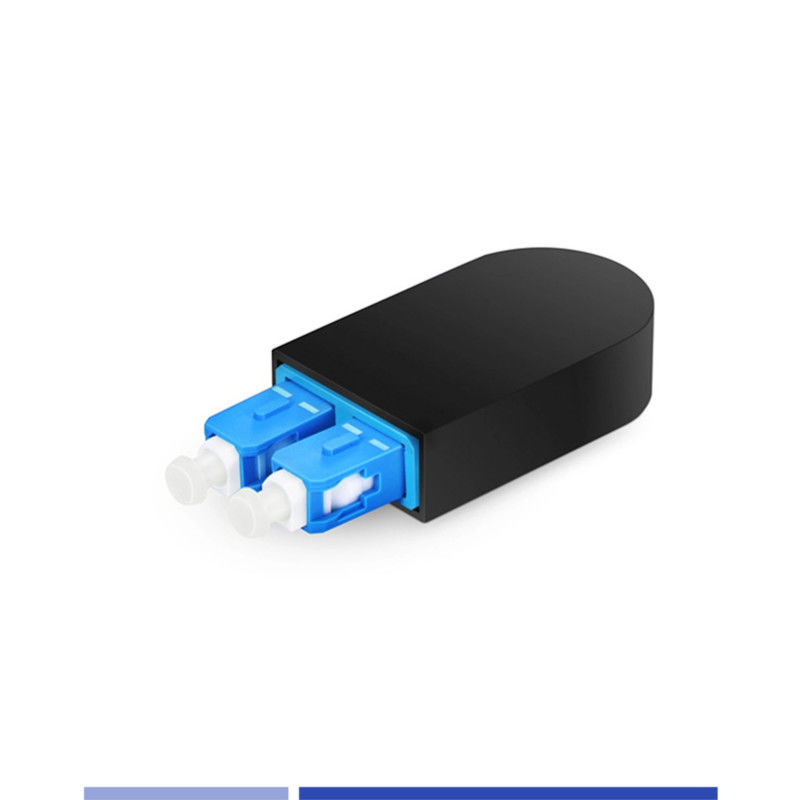

SC UPC Singlemode Fiber Loopback Module

Name: SC UPC Singlemode Fiber Loopback Module
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G4493
Availability: InStock

Brand Name:	GoreLink
Model Number:	G4493
MOQ:	1pc
Delivery Time:	1-3 Working days
Payment Terms:	T/T,Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product:

Loopback Adapter

Application:

Fiber Optic Equipment And Networks

Part No.:

G4493

Adapter Type:

SC/UPC

Cable Structure:

Loopback

Fiber Type:

Singlemode

Wavelength:

1310nm

Color:

Blue

Flange:

Insertion Loss:

≤0.3dB

Return Loss:

≥50dB

Sleeve:

Zirconia

Operating Temperature:

-20~+75℃

Storage Temperature:

-40~+85℃

Packaging Details:

1pcs/bag

Highlight:

SC Fiber Loopback Adapter

Dustproof Fiber Loopback Adapter

Dustproof SC Fiber Connector

Product Description

GoreLink Fiber Loopback Adapter is a device used primarily for testing and troubleshooting fiber optic networks. It is a simple tool that connects the outgoing and incoming fiber optic signals to test the equipment, such as fiber optic transceivers, switches, and routers, without needing to connect to an actual network.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Laboratories and Test Environments

Key Functions

Signal Loopback: The adapter takes the transmit signal from the optical port and sends it back into the same port as a receive signal. This loopback helps verify that the optical hardware is functioning correctly, especially in terms of signal integrity, transmission, and reception.
Fiber Types: Loopback adapters are available for different types of fiber optic cables, including single-mode and multi-mode fibers, and can be designed for different connector types, such as LC, SC, ST, and MTP/MPO.
Testing Functionality: They are often used in fiber optic testing or during installation procedures to ensure that the optical hardware (e.g., optical transceivers) is correctly transmitting and receiving signals.

General Specification

Fiber Adapter Type	SC/UPC loopback
Body Style	Duplex
Fiber Mode	Singlemode
Polish Type	UPC
Insertion Loss	≤0.3dB
Mounting Type	No
Housing Color	Plastic
Durability	1000 times
Alignment Sleeve Material	Ceramic
Flammability Rate	UL94-V0
Compliant	Telcordia GR-326-CORE

Download Datasheet

Fiber Optic Adapter-Loopback Series

Ordering Information

PART NO.	DESCRIPTION
G4493	SC/UPC Singlemode Fiber optic Loopback module
