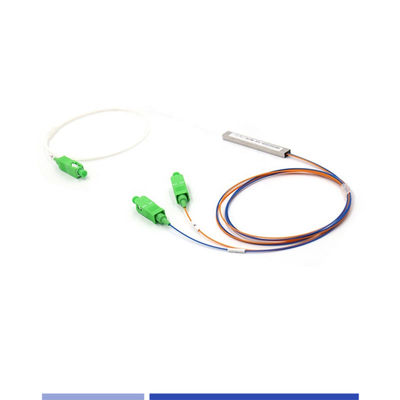

1x2 SC APC Singlemode Optical Power Splitter Blockless Mini Module 900μM

Name: 1x2 SC APC Singlemode Optical Power Splitter Blockless Mini Module 900μM
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GS01-12SCA
Availability: InStock

Brand Name:	GoreLink
Model Number:	GS01-12SCA
MOQ:	1pc
Delivery Time:	1-3 Working days
Payment Terms:	T/T, Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS,REACH

Product Name:

1x2 Blockless PLC Splitter

Application:

FTTH FTTB FTTX Network,PON & Optical CATV

Part Number:

GS01-12SCA

Form Factor:

Mini Module

Fiber Type:

Singlemode

Connector Type:

SC/APC

Fiber Diameter:

900μm

Wavelength:

1260-1650nm

Fiber Length:

1.5Meter Or Optional

Cable:

0.9mm

Storage Temperature:

-40 ~ +85 ℃

Packaging Details:

1pcs/pkt

Highlight:

SC APC Optical Power Splitter

Blockless Optical Power Splitter

Mini Module PLC Optical Splitter

Product Description

What is PLC Splitter?

A PLC splitter (Planar Lightwave Circuit splitter) is an optical device used in fiber-optic communication networks to split a single input optical signal into multiple output signals or combine multiple input signals into a single output. It is widely used in Passive Optical Networks (PON) such as FTTH (Fiber to the Home) systems.It is type of splitter is an integral component in Passive Optical Networks (PON), which are commonly used in FTTH (Fiber to the Home) systems.It can be 1x2,1x4,1x8,1x16,1x32,1x64, and 2x2,2X4,2X8,2X16,2X32,2X64 type.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Parameters
Fiber Mode	Singlemode G657A1
Configuration	1 in 2 out
Connector Type	SC/APC
In/Out Cable Diameter	0.9mm
Length	1.5m or Customized
Package Way	Mini Module
Operating Wavelength	1260-1650nm
Split Ratio	50/50
Insertion Loss	≤ 4.1dB
Return Loss	≥ 60dB
Directivity	≥ 55dB
Steel Tube Dimension	60×7×4mm
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

Blockless PLC Splitter

Premium Fiber Splitter Guarantees Stable Transmission. It is an integral component in Passive Optical Networks (PON), which are commonly used in FTTH systems.

1x2 SC APC Singlemode Optical Power Splitter Blockless Mini Module 900μM 0

1x2 SC APC Singlemode Optical Power Splitter Blockless Mini Module 900μM 1

1x2 SC APC Singlemode Optical Power Splitter Blockless Mini Module 900μM 2

Download Datasheet

Blockless PLC Splitters

Ordering Information

PART NO.	DESCRIPTION
GS01-12SCA	1x2 Blockless PLC Splitter, Mini Module, 900μm, SC/APC, Singlemode(Updated as Part#GS03-103)
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
