High Accuracy 1x2 PLC Fiber Splitter ABS Module SC/APC Singlemode 2.0mm

Name: High Accuracy 1x2 PLC Fiber Splitter ABS Module SC/APC Singlemode 2.0mm
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GS02-12SCA
Availability: InStock

Brand Name:	GoreLink
Model Number:	GS02-12SCA
MOQ:	1pc
Delivery Time:	1-3 Working days
Payment Terms:	T/T, Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS,REACH

Product:

PLC Splitter

Application:

FTTH FTTB FTTX Network,PON & Optical CATV

Part Number:

GS02-12SCA

Fiber Port:

1x8

Fiber Type:

G657A1

Connector:

SC/APC

Housing:

ABS Box

Cable Diameter:

2.0mm

Fiber Length:

1.5Meter Or Optional

Wavelength:

1260 To 1650nm

Storage Temperature:

-40 ~ +85 ℃

Packaging Details:

1pcs/pkt

Highlight:

High Accuracy PLC Fiber Splitter

ABS Module PLC Fiber Splitter

High Accuracy Fiber Optic Tube Splitter

Product Description

What is PLC Splitter?

A PLC splitter (Planar Lightwave Circuit splitter) is an optical device used in fiber-optic communication networks to split a single input optical signal into multiple output signals or combine multiple input signals into a single output. It is widely used in Passive Optical Networks (PON) such as FTTH (Fiber to the Home) systems.It is type of splitter is an integral component in Passive Optical Networks (PON), which are commonly used in FTTH (Fiber to the Home) systems.It can be 1x2,1x4,1x8,1x16,1x32,1x64, and 2x2,2X4,2X8,2X16,2X32,2X64 type.

Gorelink offers a variety of PLC Splitters. The Blockless PLC (Planar Lightwave Circuit) splitter is an optical device used in fiber optic networks to split an incoming signal into multiple outputs.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Parameters
Fiber Mode	Singlemode G657A1
Configuration	1 in 2 out
Adapter Type	SC/APC
In/Out Cable Diameter	2.0mm
Length	1.5m or Customized
Package Way	ABS Box module
Operating Wavelength	1260-1650nm
Split Ratio	50/50
Insertion Loss	≤ 7.4dB
Return Loss	≥ 60dB
Directivity	≥ 55dB
Steel Tube Dimension	100x80x10mm
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

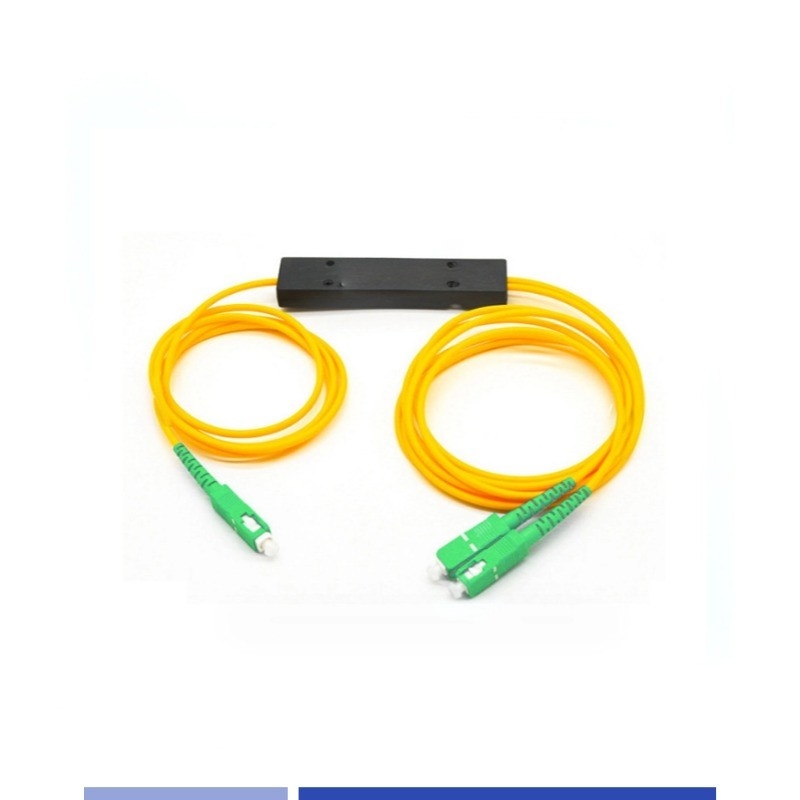

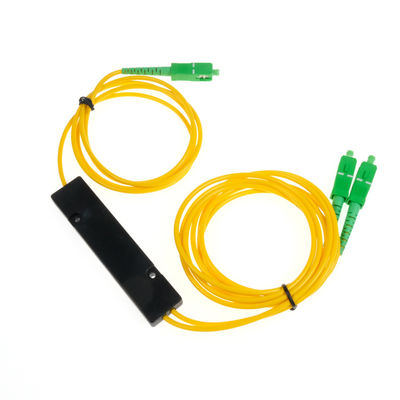

ABS Box PLC Splitter

Premium Fiber Splitter Guarantees Stable Transmission. It is an integral component in Passive Optical Networks (PON), which are commonly used in FTTH systems.

High Accuracy 1x2 PLC Fiber Splitter ABS Module SC/APC Singlemode 2.0mm 0

High Accuracy 1x2 PLC Fiber Splitter ABS Module SC/APC Singlemode 2.0mm 1

High Accuracy 1x2 PLC Fiber Splitter ABS Module SC/APC Singlemode 2.0mm 2

Download Datasheet

ABS Box PLC Splitters

Ordering Information

PART NO.	DESCRIPTION
GS02-12SCA	1x2 PLC Splitter, ABS Module, 2.0mm, SC/APC, Singlemode
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
