| Brand Name: | GoreLink |
| Model Number: | GS02-12SC |
| MOQ: | 1pc |
| Delivery Time: | 1-3 Working days |
| Payment Terms: | T/T, Western Union,Paypal |

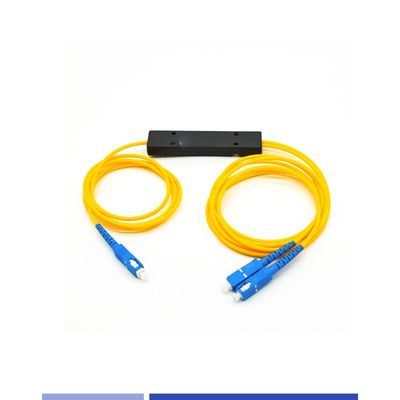

Gorelink offers a variety of PLC Splitters. The Blockless PLC (Planar Lightwave Circuit) splitter is an optical device used in fiber optic networks to split an incoming signal into multiple outputs.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Parameters |
|
|
Fiber Mode |
Singlemode G657A1 |
|
Configuration |
1 in 2 out |
|
Adapter Type |
SC/UPC |
|
In/Out Cable Diameter |
2.0mm |
|
Length |
1.5m or Customized |
|
Package Way |
ABS Box module |
|
Operating Wavelength |
1260-1650nm |
|
Split Ratio |
50/50 |
|
Insertion Loss |
≤ 7.4dB |
|
Return Loss |
≥ 60dB |
|
Directivity |
≥ 55dB |
|
Steel Tube Dimension |
100x80x10mm |
|
Operating Temperature (°C) |
-20 ~ +75 |
|
Storage Temperature (°C) |
-40 ~ +85 |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
GS02-12SC |
1x2 PLC Splitter, ABS Module, 2.0mm, SC/UPC, Singlemode |
|
* Customized |
|
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
