| Brand Name: | GoreLink |
| Model Number: | GS03-14SCA |
| MOQ: | 1pc |
| Delivery Time: | 1-3 Working days |
| Payment Terms: | T/T, Western Union,Paypal |
Gorelink offers a variety of PLC Splitters. The Blockless PLC (Planar Lightwave Circuit) splitter is an optical device used in fiber optic networks to split an incoming signal into multiple outputs. This type of splitter is an integral component in Passive Optical Networks (PON), which are commonly used in FTTH (Fiber to the Home) systems.It can be 1x2,1x4,1x8 for your choice.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Parameters |
|
|
Fiber Mode |
Singlemode |
|
Configuration |
1 in 4 out |
|
Connector Type |
SC/APC |
|
In/Out Cable Diameter |
2.0mm |
|
Package Way |
LGX box |
|
Operating Wavelength |
1260-1650nm |
|
Insertion Loss |
≤ 14.1dB |
|
Return Loss |
≥ 60dB |
|
Directivity |
≥ 55dB |
|
Operating Temperature (°C) |
-20 ~ +75 |
|
Storage Temperature (°C) |
-40 ~ +85 |
Premium Fiber Splitter Guarantees Stable Transmission. It is an integral component in Passive Optical Networks (PON), which are commonly used in FTTH systems.
Ordering Information
|
PART NO. |
DESCRIPTION |
|
GS03-14SCA |

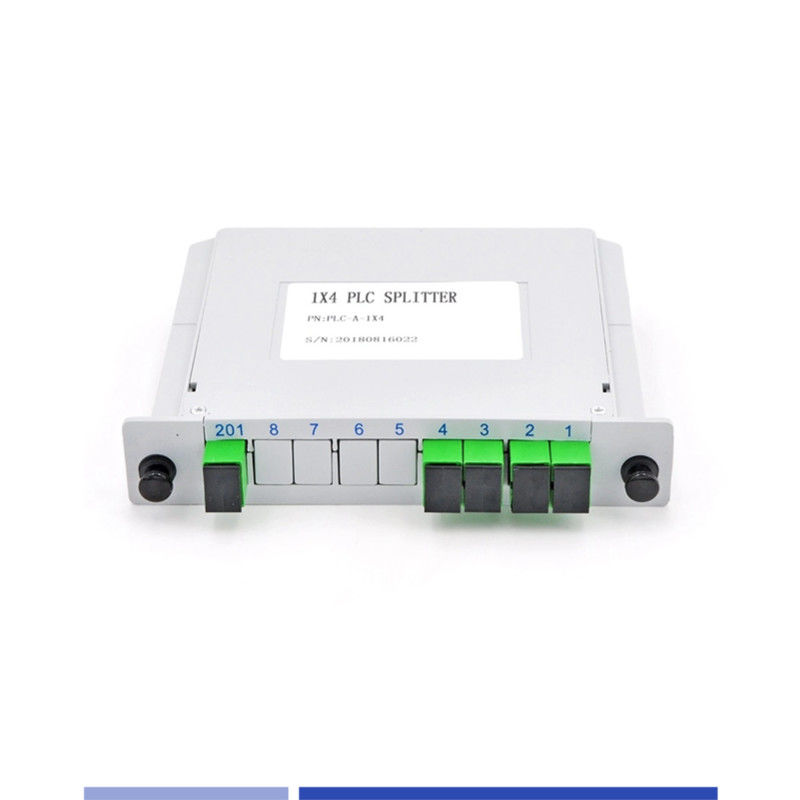

1x4 PLC Splitter,SC/APC, LGX Box, Singlemode |
| * Customized | |
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
