12 Port Fiber Optic Distribution Box with Cold-rolled Steel Construction for Wall Mounted Applications

Name: 12 Port Fiber Optic Distribution Box with Cold-rolled Steel Construction for Wall Mounted Applications
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-FB08-12SC
Availability: InStock

Brand Name:	GoreLink
Model Number:	GL-FB08-12SC
MOQ:	Negotiable
Delivery Time:	1-7 Working days
Payment Terms:	T/T,Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Application:

Indoor Use

Part No.:

GL-FB08-12SC

Capacitry:

12 Core

Material:

Cold-rolled Steel

No. Of Cable Port:

3 Port

Suitable Adapter:

SC/LC

Adapter Type:

Simplex/Duplex

Cable Diameter:

5-8 Mm

Mounting Way:

Wall Mounted

Lock Compatible:

Screws

Operating Temperature:

-20℃ To 80℃

Color:

Grey Or Customized

OEM:

Yes

Packaging Details:

1pcs/box

Highlight:

12 Port Optical Fiber Distribution Box

12 Core Optical Fiber Distribution Box

12 Core Fiber Optic Distribution Unit

Product Description

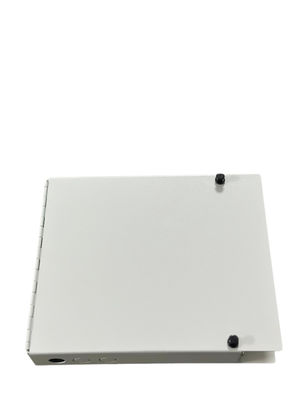

12 Port Optical Fiber Terminal Box LC/SC 12 Core Metal Fiber Optic Distribution Unit

This 12 Port Fiber Distribution Box with SC Simplex fiber terminal is engineered for FTTH optical fiber access applications. Constructed from durable cold-rolled steel, this distribution unit is designed to meet the growing demands of Passive Optical LAN and FTTX networks requiring high-speed optical fiber connections.

The terminal box offers exceptional flexibility with multiple configuration options, available either unloaded or pre-loaded with simplex or duplex adapters. Compatible with SC, LC, ST, and FC connector types, it supports a maximum capacity of up to 16 fibers.

Applications

FTTH Access Networks
Telecommunication Networks
CCTV Security Networks
Data Center Infrastructure
Local Area Networks

Technical Specifications

Design	Fiber Wall-Mount Distribution Box
Material	Cold-rolled Steel
Mounting Type	Wall Mounting
Capacity	12 Fibers (Splicing)
Suitable Cable	Φ5 - Φ8mm
Suitable Adapter	LC/SC/FC/ST
Available Adapter	Simplex/Duplex
Insertion Loss	≤ 0.3dB
Return Loss	≥ 55dB
Color	Grey
Dimension	245 × 200 × 48mm
Operating Temperature	-20°C to +80°C
Storage Temperature	-40°C to +80°C

Ordering Information

Part Number	Description
GL-FB08-12SC	12 Port Fiber Optic Distribution Box, SC Simplex, Unloaded
GL-FB08-12SC-901	12 Port Fiber Optic Distribution Box, SC Simplex, Loaded SC/UPC SM Simplex Adapter
GL-FB08-12SC-903	12 Port Fiber Optic Distribution Box, SC Simplex, Loaded SC/APC SM Simplex Adapter
* Custom configurations available

For additional assistance or custom requirements, please contact our sales team at sales@gorelink.com
