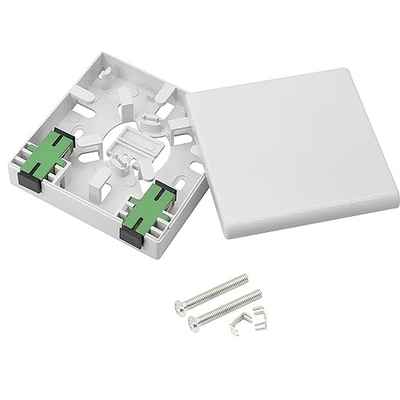

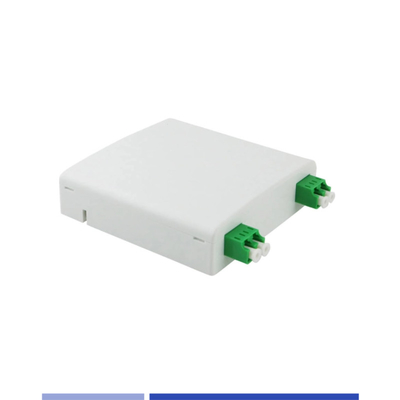

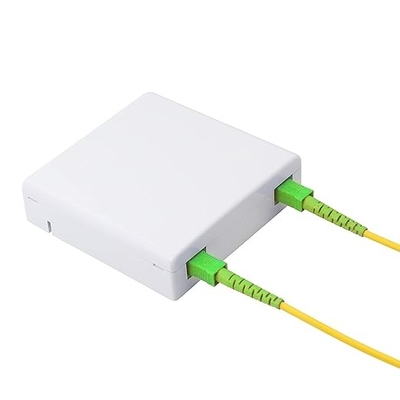

LC/SC Adapter Fiber Optic Distribution Box 2 Core 2 Port Indoor Fiber Termination Box

Name: LC/SC Adapter Fiber Optic Distribution Box 2 Core 2 Port Indoor Fiber Termination Box
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-FB01-2SC
Availability: InStock

Brand Name:	GoreLink
Model Number:	GL-FB01-2SC
MOQ:	Negotiable
Delivery Time:	1-7 Working days
Payment Terms:	T/T, Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS,REACH

Part No.:

GL-FB01-2SC

No. Of Port:

2 Ports

Material:

ABS

Application:

Outdoor

Suitable Adapter:

SC/LC

Capacitry:

2 Core

Adapter Type:

Simplex/Duplex

Cable Diameter:

6-12mm

Mounting Way:

Wall Mounted

Lock Compatible:

Screws

Operating Temperature:

-20℃ To 75℃

Color:

Grey Or Customized

OEM:

Yes

Packaging Details:

1pcs/box

Highlight:

LC SC Fiber Optic Distribution Box

Adapter Fiber Optic Distribution Box

2 Port Indoor Fiber Termination Box

Product Description

8 Port Fiber Distribution Box, SC Simplex, Loaded SC/APC SM Simplex Adapter

Gorelink Fiber Distribution Box integrates optical fiber splicing, splitting, and wiring, it is designed to a termination point for the feeder cable to connect with drop cable in FTTx communication network system. Its waterproof design can be used indoor or outdoor environment. It can be used to protect the connection between cable and pigtail and optic fiber terminations in the optic access network. It can be wall mounting or pole mounting installation. Also It is suitable for 1:8, 1:16, 1:32 insert- type splitter as well as direct splicing in splice tray connection. It provides a safe and organized way to connect fiber optic cables to devices such as routers, switches, and other networking equipment.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Design	Fiber Wall Box
Material	ABS
Mounting Type	Wall Mounting
Capacity	2 Fibers
Suitable Cable	3.0mm & 2*3mm Drop cable
Suitable Adapter	LC/SC
Loaded	SC/APC SM Simplex adapter
Insertion Loss	≤ 0.3dB
Return Loss	≥ 55dB
Color	White
Dimension	86x86x22mm
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

LC/SC Adapter Fiber Optic Distribution Box 2 Core 2 Port Indoor Fiber Termination Box 0

Download Datasheet

Fiber Optic Distribution Box- GL-FB01 Series

Ordering Information

PART NO.	DESCRIPTION
GL-FB01-2SC	2 Port Fiber Optic Distribution Box, SC Simplex, unloaded
GL-FB01-2LC	2 Port Fiber Optic Distribution Box, LC Simplex, unloaded
GL-FB01-2SC-901	2 Port Fiber Optic Distribution Box, SC Simplex, Loaded SC/UPC SM Simplex Adapter
GL-FB01-2SC-902	2 Port Fiber Optic Distribution Box, SC Simplex, Loaded SC/APC SM Simplex Adapter
* Customized
