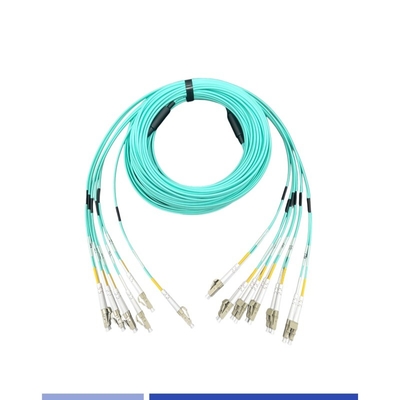

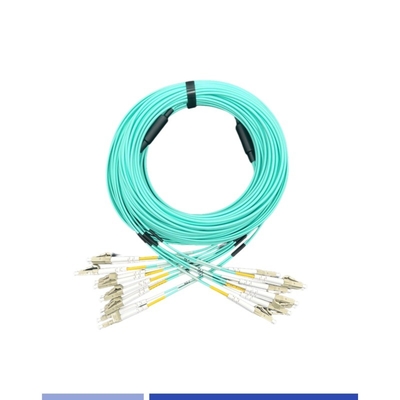

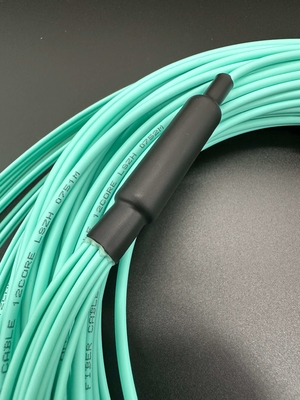

12 Core OM3 LC Fiber Optic Trunk Cable Duplex 25m LSZH Jacket

Name: 12 Core OM3 LC Fiber Optic Trunk Cable Duplex 25m LSZH Jacket
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G233-11112-25
Availability: InStock

Brand Name:	GoreLink
Model Number:	G233-11112-25
MOQ:	1 Piece
Delivery Time:	1-3 Working days
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

RoHS,REACH

Product:

LC-LC Fiber Optic Trunk Cables

Application:

FTTH FTTB FTTX Network,Data Center

Part No.:

G233-11112-25

Fiber Count:

12 Cores

Connector:

LC/UPC-LC/UPC Duplex

Fiber Mode:

Multimode OM3

Jacket:

LSZH

Fanout:

2.0mm

Fanout Length:

0.5m Or Customized

Length:

25m

Diameter:

9.5mm

Insertion Loss:

≤0.30dB

Return Loss:

≥30dB

Wavelength:

850nm,1300nm

Color:

Aqua

Quality Control:

100% Test Before Shipping

Customized:

Yes

Packaging Details:

Neutral Bag/GoreLink Bag

Product Description

12 Fibers LC-LC Fiber Trunk Cable, Multimode OM3, LSZH,Aqua

GoreLink OM3 LC-LC 12-core fiber trunk cable is a pre-terminated, high-speed multimode fiber optic cable designed for reliable data transmission in data centers, enterprise networks, and telecom applications. It consists of 12 optical fibers (6 duplex LC connectors) in a single jacket, ensuring high-density connectivity with low insertion loss.

Application

FTTH access network
Telecommunication Networks
Data Centers (40/100G SR4, QSFP+ links)
Enterprise Networks (backbone, server connectivity)
Telecom & CCTV Systems (high-bandwidth video/data transfer)

Key Features & Benefits

High-Speed Data Transmission
OM3 Multimode Fiber Optimized for 10G, 40G, and 100G Ethernet
Laser-Optimized (850nm VCSEL): Ensures low latency and high bandwidth (up to 10 Gbps @ 300m).
Reliable & Durable Construction
LC-LC Duplex Connectors: Standard small-form-factor connectors for high-density patch panels.
12 Fibers (6 Duplex Channels): Supports multiple connections in a single cable, reducing clutter.
LSZH/OFNR/OFNP Jacket Options: Flame-retardant for safety compliance in data centers.
Plug-and-Play Installation
Pre-Terminated & Tested: Saves time vs. field termination, ensuring low insertion loss (<0.3dB).
Flexible & Lightweight: Easy to route in tight spaces (e.g., server racks).

12 Core OM3 LC Fiber Optic Trunk Cable Duplex 25m LSZH Jacket 0

General Specification

Fiber Mode	Multimode OM3 50/125um
Fiber Count	12 Fibers
Connector A	LC/PC
Connector B	LC/PC
Wavelength	850nm/1300nm
Polish Way	PC
Cable Diameter	9.5±0.05mm
Cable Color	Aqua
Cable Jacket	LSZH
Cable length	As per the order request
OPTICAL PERFORMANCE
Insertion Loss(IL)	≤0.30 dB (Low loss)
Return Loss(RL)	≥30dB
40/100G Ethernet Distance	150m @850nm
10G Ethernet Distance	400m @850nm
Operating Temperature	-10 to +70℃
Storage Temperature	0 to +60℃

Ordering Information

PART NO.	DESCRIPTION
G233-11112-3	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,3Mtr,Fanout 2.0mm 0.5m
G233-11112-5	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,5Mtr,Fanout 2.0mm 0.5m
G233-11112-10	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,10Mtr,Fanout 2.0mm 0.5m
G233-11112-15	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,15Mtr,Fanout 2.0mm 0.5m
G233-11112-25	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,25Mtr,Fanout 2.0mm 0.5m
G233-11112-30	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,30Mtr,Fanout 2.0mm 0.5m
* Customized length

If you need any more help, please feel free to contact us at sales@gorelink.com .
