2 Fiber Singlemode 9/125um Aerial Fiber Drop Cable PE Jacketed GYXTC8S

Name: 2 Fiber Singlemode 9/125um Aerial Fiber Drop Cable PE Jacketed GYXTC8S
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-GYXTC8S-802
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GoreLink

Certification: ISO,RoHS,REACH

Model Number: GL-GYXTC8S-802

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Packaging Details: Wooden Drum/Spool+Carton

Delivery Time: As per the order quantity

Payment Terms: T/T,Paypal,Western Union,

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Features:	Good Mechanical Performance	Application:	Aerial Fiber Optic Cable
Part No.:	GL-GYXTC8S-802	Fiber Type:	Singlemode 9/125um
Fiber Count:	2 Fiber	Cable Design:	Uni-tube
Messenger:	Steel Wire Messenger	Fiber Code:	GYXTC8S
Armor:	Corrugated Steel Tape	Laying Type:	Duct, Aerial
Max Cores:	12 Cores

Features:	Good Mechanical Performance
Application:	Aerial Fiber Optic Cable
Part No.:	GL-GYXTC8S-802
Fiber Type:	Singlemode 9/125um
Fiber Count:	2 Fiber
Cable Design:	Uni-tube
Messenger:	Steel Wire Messenger
Fiber Code:	GYXTC8S
Armor:	Corrugated Steel Tape
Laying Type:	Duct, Aerial
Max Cores:	12 Cores

Description

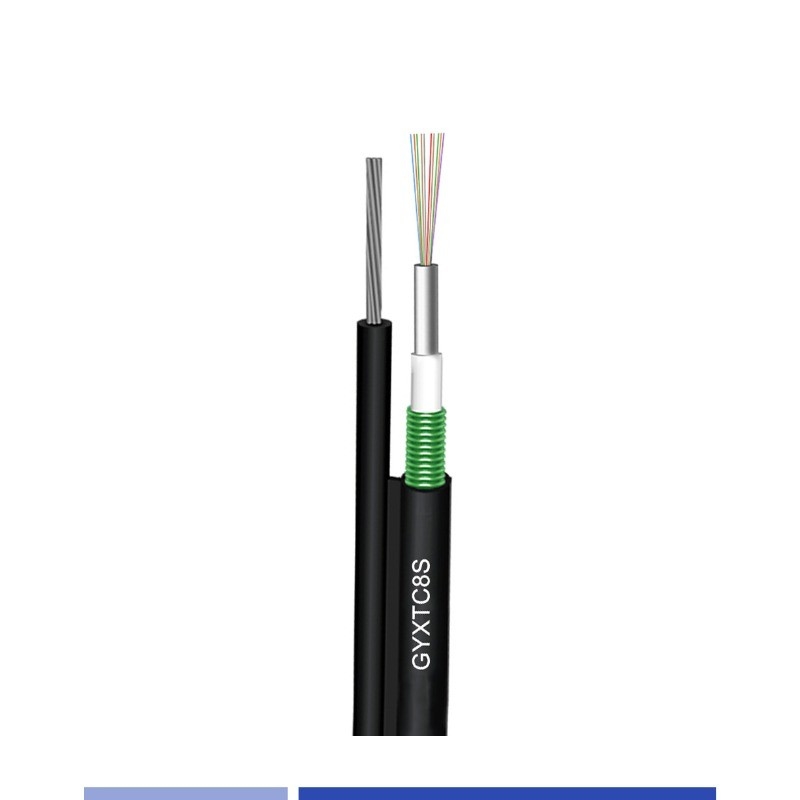

2 Fiber Singlemode 9/125um Aerial Fiber Drop Cable PE Jacketed GYXTC8S

Outdoor Aerial Fiber Optic Cable,2 Fiber, Singlemode 9/125, Armored, with steel wire messenger,PE,Black,GYXTC8S

Gorelink Fiber Optic Arerial Cables are made for outdoor use along utility poles for cable television, telecom or other outside plant campus backbone applications. With the sturdy 1/4" galvanized messenger wire pre-attached to the aerial fiber optic cable, the cable is self-supported, virtually eliminating the need for the aerial fiber cable to be lashed to an external wire. This figure-eight design reduces the installation time and cost by approximately 50% when compared to separate installation of a messenger wire and the lashing of the cable to the messenger.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	2 Core

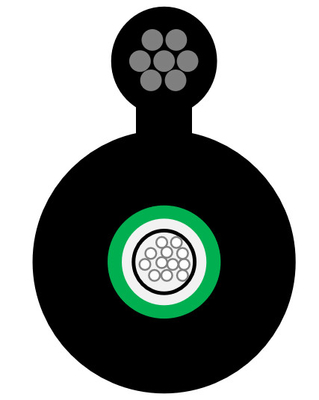

Cable structure	Uni-Central Loose tube
Cable Armor	Corrugated Steel Tape Armor
Strength Messenger	7x 1.0mm Steel wire
Cable Diameter	9.8-10.5mm
Outer Jacket	PE
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.36 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

2 Fiber Singlemode 9/125um Aerial Fiber Drop Cable PE Jacketed GYXTC8S 0

Download Datasheet

Outdoor Aerial Fiber Optic Cable- GYXTC8S-Singlemode

Ordering Information

PART NO.	DESCRIPTION
GL-GYXTC8S-802	Outdoor Aerial Fiber Optic Cable,2 Fiber,Singlemode G652D,PE,Black,GYXTC8S
GL-GYXTC8S-806	Outdoor Aerial Fiber Optic Cable,6 Fiber,Singlemode G652D,PE,Black,GYXTC8S
GL-GYXTC8S-808	Outdoor Aerial Fiber Optic Cable, 8 Fiber,Singlemode G652D,PE,Black,GYXTC8S
GL-GYXTC8S-812	Outdoor Aerial Fiber Optic Cable,12 Fiber,Singlemode G652D,PE,Black,GYXTC8S
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
