48 Core Outdoor Fiber Optic Cable Singlemode 9/125um Armored PE GYTS Duct cable

Name: 48 Core Outdoor Fiber Optic Cable Singlemode 9/125um Armored PE GYTS Duct cable
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-GYTS-848
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GoreLink

Certification: ISO,RoHS,REACH

Model Number: GL-GYTS-848

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Packaging Details: Wooden Drum/Spool+Carton

Delivery Time: As per the order quantity

Payment Terms: T/T,Paypal,Western Union,

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Application:	Suitable For Duct,Aerial Laying	Part Number:	GL-GYTS-848
Fiber Type:	Singlemode 9/125um	Cable Type:	Armored
Design:	Stranded Loose Tube Design	Strength Member:	Metallic Central Strength Member
Armor:	Corrugated Steel Tape Armor	Maximum Capacity:	288 Cores
Fiber Code:	GYTS	Operating Temperature:	-40 ~+70
Outer Jacket:	PE

Application:	Suitable For Duct,Aerial Laying
Part Number:	GL-GYTS-848
Fiber Type:	Singlemode 9/125um
Cable Type:	Armored
Design:	Stranded Loose Tube Design
Strength Member:	Metallic Central Strength Member
Armor:	Corrugated Steel Tape Armor
Maximum Capacity:	288 Cores
Fiber Code:	GYTS
Operating Temperature:	-40 ~+70
Outer Jacket:	PE

Description

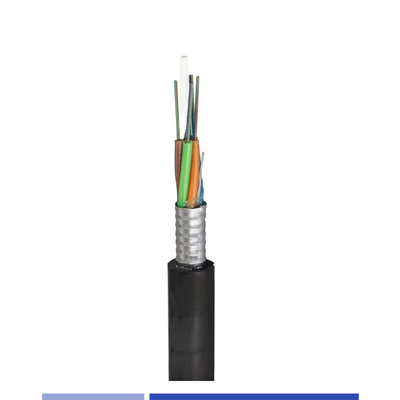

48 Core Outdoor Fiber Optic Cable Singlemode 9/125um Armored PE GYTS Duct cable

Gorelink GYTS Outdoor Fiber optic cable are designed for outside plant applications and intended for use in communication network connects requiring cable to be installed within duct systems or lashed to aerial messenger wire structures.It is metallic strength member with corrugated steel tape armor protection.The stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications grade optical fiber.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	48 Core

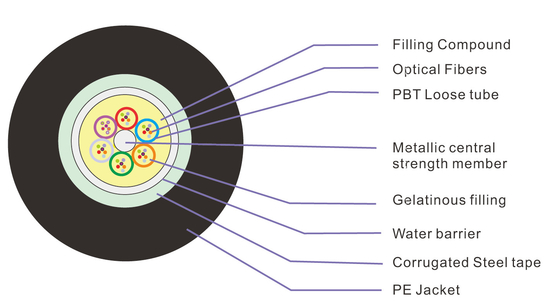

Cable structure	Stranded Loose tube
Cable Armor	Corrugated Steel Tape Armor
Strength Member	Metallic
Cable Diameter	9.8-10.5mm
Outer Jacket	PE
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.36 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

48 Core Outdoor Fiber Optic Cable Singlemode 9/125um Armored PE GYTS Duct cable 0

Download Datasheet

Outdoor Armored Fiber Optic Cable- GYTS-Singlemode

Ordering Information

PART NO.	DESCRIPTION
GL-GYTS-806	Outdoor Armored Fiber Optic Cable,6 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-808	Outdoor Armored Fiber Optic Cable,8 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-812	Outdoor Armored Fiber Optic Cable,12 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-824	Outdoor Armored Fiber Optic Cable,24 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-848	Outdoor Armored Fiber Optic Cable,48 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-896	Outdoor Armored Fiber Optic Cable,96 Fiber,Singlemode G652D,PE,Black,GYTS
GL-GYTS-8144	Outdoor Armored Fiber Optic Cable,144 Fiber,Singlemode G652D,PE,Black,GYTS
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
