96 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE

Name: 96 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-ADSS/D10-896
Availability: InStock

Brand Name:	GoreLink
Model Number:	GL-ADSS/D10-896
MOQ:	1000m
Delivery Time:	As per the order quantity
Payment Terms:	T/T,Paypal,Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ISO,RoHS,REACH

Features:

Light Weight & Reduced-Diameter

Application:

Outdoor Aerial Cable

Suitable For:

Duct, Aerial Laying

Part No.:

GL-ADSS/D10-896

Fiber Mode:

Singlemode 9/125um

Fiber Count:

96 Core

Max. Capacity:

Up To 96 Cores

Design:

Central Loose Tube Design

Armor:

Inner Jacket:

Strength Memeber:

Aramid Yarn

Outer Jacket:

Span:

100m

Packaging Details:

Wooden Drum/Spool+Carton

Product Description

Gorelink ADSS (All-dielectric Self-supporting) cable is designed for aerial installation and deployment, which is suitable for various outdoor applications. This comprehensive introduction will cover the definition, structure, advantages, and applications of ADSS cables.

It is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	96 Core

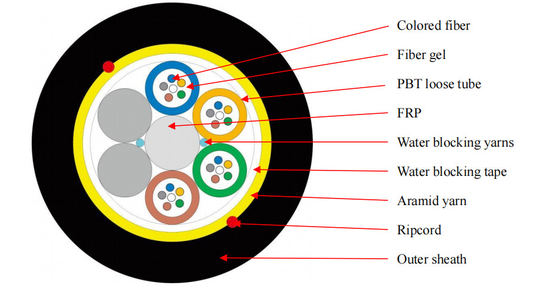

Cable structure	Double inner jacket with Stranded Loose tube
Cable Armor	Non-metallic
Strength Member	Aramid yarn+FRP
Inner Jacket	PE
Outer Jacket	PE
Cable Color	Black
Span	100m
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.35 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

96 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE 0

Check the ordering information to find what you are looking for.

Please Contact Us freely if you need any help.

Download Datasheet

Outdoor ADSS Fiber Optic Cable- Singlemode-Double jacket

Ordering Information

PART NO.	DESCRIPTION
GL-ADSS/D10-812	Outdoor ADSS Fiber Optic Cable,12 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m
GL-ADSS/D10-824	Outdoor ADSS Fiber Optic Cable,24 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m
GL-ADSS/D10-848	Outdoor ADSS Fiber Optic Cable,48 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m
GL-ADSS/D10-896	Outdoor ADSS Fiber Optic Cable,96 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com
