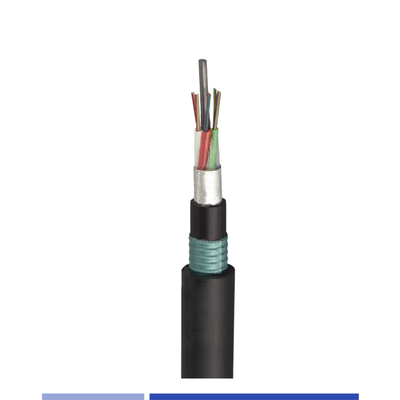

48 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable

Name: 48 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-GYTA53-848
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GoreLink

Certification: ISO,RoHS,REACH

Model Number: GL-GYTA53-848

Payment & Shipping Terms

Minimum Order Quantity: 1000m

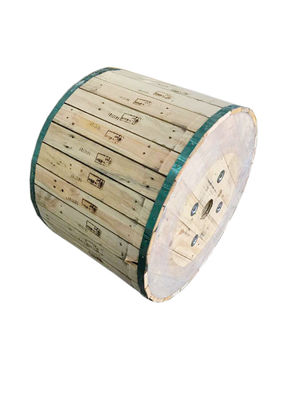

Packaging Details: Wooden Drum

Delivery Time: As per the order quantity

Payment Terms: T/T,Paypal,Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Application:	Direct Burial Fiber Optic Cable	Part Number:	GL-GYTA53-848
Fiber Type:	Singlemode G652D	Fiber Count:	48 Fiber
Strength Member:	Metallic Central Strength Member	Inner Sheath:	PE
Armored:	Aluminum Tape+corrugated Steel Tape	Max. Capacity:	Up To 288 Cores
Fiber Code:	GYTA53	Outer Jacket:	PE

Application:	Direct Burial Fiber Optic Cable
Part Number:	GL-GYTA53-848
Fiber Type:	Singlemode G652D
Fiber Count:	48 Fiber
Strength Member:	Metallic Central Strength Member
Inner Sheath:	PE
Armored:	Aluminum Tape+corrugated Steel Tape
Max. Capacity:	Up To 288 Cores
Fiber Code:	GYTA53
Outer Jacket:	PE

Description

48 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable

Gorelink Direct-buried fiber optic cables can be directly buried in the ground, which eliminates the need for additional protective conduits or ducts, saving installation time and costs. They are designed to offer increased durability and resistance to moisture, temperature fluctuations, and physical damage.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

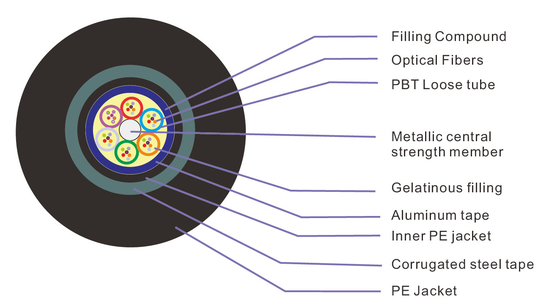

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	48 Core
Cable structure	Stranded Loose tube
Double Armor	Aluminum + Corrugated Steel Tape Armor
Inner Sheath	PE
Strength Member	Metallic
Cable Diameter	12.0-18.5mm
Outer Jacket	PE
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.36 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

48 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable 0

Download Datasheet

Outdoor Direct Burial Armored Fiber Optic Cable- GYTA53-Singlemode

Ordering Information

PART NO.	DESCRIPTION
GL-GYTA53-808	Outdoor Fiber Optic Cable, 8 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
GL-GYTA53-812	Outdoor Fiber Optic Cable,12 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
GL-GYTA53-824	Outdoor Fiber Optic Cable, 24 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
GL-GYTA53-848	Outdoor Fiber Optic Cable, 48 Fiber,Singlemode G652D,Direct Buried, PE,Black,GYTA53
GL-GYTA53-896	Outdoor Fiber Optic Cable, 96 Fiber,Singlemode G652D, Direct Buried ,PE,Black,GYTA53
GL-GYTA53-8144	Outdoor Fiber Optic Cable, 144 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
