96 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable

Name: 96 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-GYTA53-896
Availability: InStock

Brand Name:	GoreLink
Model Number:	GL-GYTA53-896
MOQ:	1000m
Delivery Time:	As per the order quantity
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ISO,RoHS,REACH

Application:

Direct Burial Fiber Optic Cable

Part Number:

GL-GYTA53-896

Fiber Type:

Singlemode G652D

Fiber Count:

96 Fiber

Strength Member:

Metallic Central Strength Member

Inner Sheath:

Armored:

Aluminum Tape+corrugated Steel Tape

Max. Capacity:

Up To 288 Cores

Fiber Code:

GYTA53

Outer Jacket:

Packaging Details:

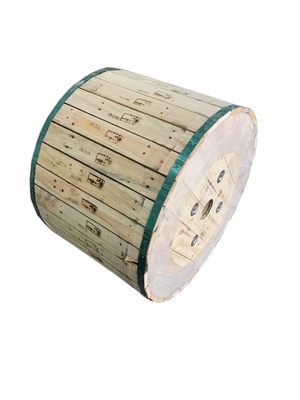

Wooden Drum

Product Description

Gorelink Direct-buried fiber optic cables can be directly buried in the ground, which eliminates the need for additional protective conduits or ducts, saving installation time and costs. They are designed to offer increased durability and resistance to moisture, temperature fluctuations, and physical damage.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	96 Core

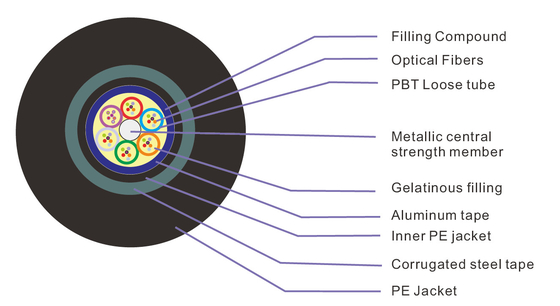

Cable structure	Stranded Loose tube
Double Armor	Aluminum + Corrugated Steel Tape Armor
Inner Sheath	PE
Strength Member	Metallic
Cable Diameter	12.0-18.5mm
Outer Jacket	PE
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.36 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

96 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable 0

Download Datasheet

Outdoor Direct Burial Armored Fiber Optic Cable- GYTA53-Singlemode

Ordering Information

PART NO.	DESCRIPTION
GL-GYTA53-808	Outdoor Fiber Optic Cable, 8 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
GL-GYTA53-812	Outdoor Fiber Optic Cable,12 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
GL-GYTA53-824	Outdoor Fiber Optic Cable, 24 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
GL-GYTA53-848	Outdoor Fiber Optic Cable, 48 Fiber,Singlemode G652D,Direct Buried, PE,Black,GYTA53
GL-GYTA53-896	Outdoor Fiber Optic Cable, 96 Fiber,Singlemode G652D, Direct Buried ,PE,Black,GYTA53
GL-GYTA53-8144	Outdoor Fiber Optic Cable, 144 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
