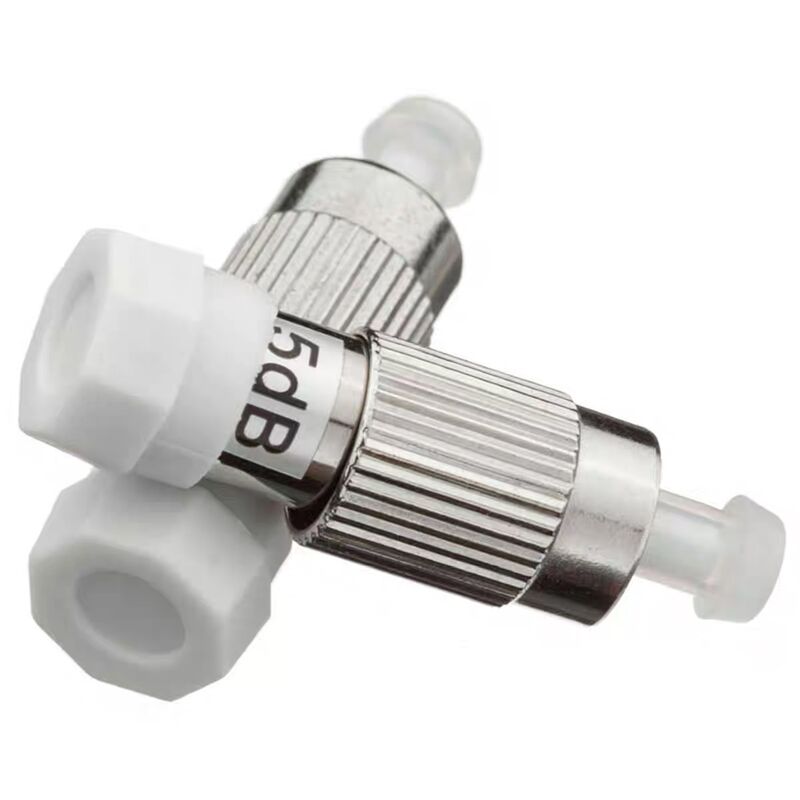

FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB

Name: FC/UPC Fixed Plug-in Fiber Optic Attenuator singlemode 5dB
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-AT-P-FCU-05
Availability: InStock

Brand Name:	GoreLink
Model Number:	GL-AT-P-FCU-05
MOQ:	1pc
Delivery Time:	1-3 Working days
Payment Terms:	T/T,Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Features:

Low Insertion Loss And Good Durability

Product Name:

Fiber Optic Attenuator

Application:

CATV

Connector Type:

FC/UPC

Fiber Type:

Singlemode

Attenuation:

5 DB

Part Number:

GL-AT-P-FCU-05

Attenuation Level Range:

0~30dB Customized

Type:

Fixed Plug-in Fiber Attenuator

Repeatably:

≤0.2db

Wavelength:

1260 To 1650nm

Packaging Details:

1pcs/bag

Highlight:

FC/UPC fiber optic attenuator 5dB

singlemode fixed plug-in attenuator

fiber optic attenuator with warranty

Product Description

FC/UPC Fixed Plug-in Fiber Optic Attenuator Singlemode 5dB

The FC/UPC fixed fiber optic attenuator is engineered to reduce optical signal power in singlemode fiber optic systems. Featuring a plug-in (male-female) structure with precision ceramic ferrule and metal housing, it delivers stable attenuation performance, low return loss, and exceptional reliability for telecom, CATV, and optical communication applications. Available in attenuation values ranging from 1dB to 30dB.

Applications

Fiber optic communication networks
FTTH and FTTx systems
CATV systems
Optical transmission systems
Test and measurement equipment
Preventing receiver overload in short-distance optical links

Key Features

FC/UPC interface for low back reflection
Plug-in (Male-Female) type for easy installation
Singlemode OS2 compatible
Fixed attenuation values from 1dB to 30dB
Low Polarization Dependent Loss (PDL)
Stable performance at 1310nm and 1550nm wavelengths
Metal housing with precision ceramic ferrule
Compact and durable structure
100% factory tested for attenuation accuracy

General Specifications

Fiber Mode	Singlemode
Connector Type	FC/UPC
Structure	Plug-in (Male-Female)
Ferrule	Zirconia Ceramic
Operating Wavelength (nm)	1310~1550
Durability	>1000 times
Max Optical Input Power	200mW
Return Loss	>50dB
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

Fixed Customized Singlemode Fiber Optic Attenuator

The optical attenuator features precise attenuation values, low PDL, low insertion loss, and fine reflection polishing for optimal performance.

Durable Metal Shell protects the core insert from external damage

Protective Dust Cap prevents dust accumulation and maintains cleanliness

Zirconia Ceramic Ferrule with precision polishing for reduced back reflection

Download Datasheet

FC/UPC Fiber Optic Attenuator

Ordering Information

PART NO.	DESCRIPTION
GL-AT-P-FCU-03	GoreLink Plug-in Fiber optic attenuator, FC/UPC SM Metal, 3dB
GL-AT-P-FCU-05	GoreLink Plug-in Fiber optic attenuator, FC/UPC SM Metal, 5dB
GL-AT-P-FCU-08	GoreLink Plug-in Fiber optic attenuator, FC/UPC SM Metal, 8dB
GL-AT-P-FCU-15	GoreLink Plug-in Fiber optic attenuator, FC/UPC SM Metal, 15dB
Customized	Custom configurations available

If you need any further assistance, please feel free to contact us at sales@gorelink.com.
