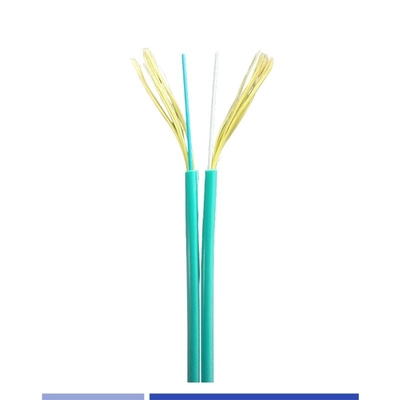

Indoor Fiber Optic Cable ZipCord Duplex OM3 50/125um LSZH Jacket 2.0mm Lightweight

Name: Indoor Fiber Optic Cable ZipCord Duplex OM3 50/125um LSZH Jacket 2.0mm Lightweight
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G123-102
Availability: InStock

Brand Name:	GoreLink
Model Number:	G123-102
MOQ:	1000m
Delivery Time:	As per the order quantity
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,RoHS,REACH

Features:

Widely Used Between Wiring Closets And Equipment Rooms

Product Name:

Zipcord Fiber Optic Cable

Part Number:

G123-102

Fiber Type:

OM3

Core/Cladding Diameter:

50/125um

Jacket:

LSZH

Diameter:

2.0mm

Color:

Aqua

Operating Temperature:

-20℃ To 75℃

Wavelength:

850nm,1300nm

Packaging Details:

Spool+Carton

Highlight:

LSZH Jacket Indoor Fiber Optic Cable

Lightweight Indoor Fiber Optic Cable

LSZH Jacket Fiber Optic Zip Cord

Product Description

Indoor Fiber Optic Zipcord Cable,OM3 50/125um,LSZH,2.0mm

Zipcord Duplex Optical Fiber Cable is used for general indoor applications where consistency and uniformity are essential. It contains 2 fibers with aramid yarn as strength members to stiffen the cable and prevent kinking.Its durable design allows it to withstand installations and operations. The cable is lightweight, soft, and easy to peel with aramid yarn as a reinforcing member. It is widely used for data centers, indoor point-to-point connections, and pigtails and jumpers for communication equipment. The strands are color-coded for easy identification and installation.

Application of Zipcord Fiber Optic Cable

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

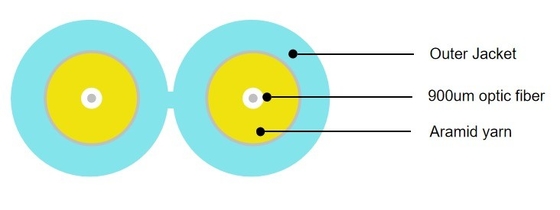

General Specification of Zipcord Fiber Optic Cable

Fiber Mode	Multimode OM3 50/125um
Cable structure	Duplex
Strength Member	Aramid Yarn
Cable Diameter	2.0mm
Cable Color	Aqua
Cable Jacket	LSZH
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤2.4 dB @850nm
Core diameter(um)	50/125
Cladding diameter(um)	125
Wavelength	850nm / 1300nm

Indoor Fiber Optic Cable ZipCord Duplex OM3 50/125um LSZH Jacket 2.0mm Lightweight 0

Ordering Information

PART NO.	DESCRIPTION
G123-102	Fiber Optic Zipcord Cable,Multimode OM3 50/125um,Duplex,LSZH,2.0mm,Aqua
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com
