| Brand Name: | GoreLink |
| MOQ: | 1000m |
| Delivery Time: | As per the order quantity |
| Payment Terms: | T/T,Paypal,Western Union, |
Indoor Flat Fiber Drop Cable , Multimode OM3,6 Fiber, LSZH,Black

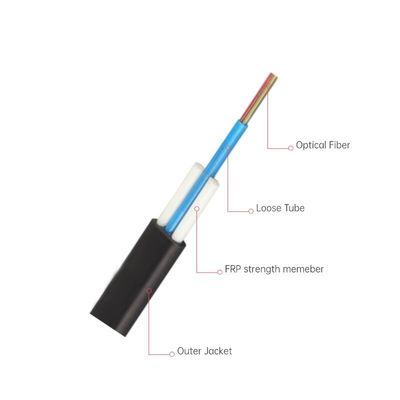

Gorelink Fiber Flat drop cable, also known as optical drop cable, is a crucial component in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) deployments. It is designed to connect the distribution point or optical network terminal (ONT) to individual residences or businesses. This bow type drop cable comes with novel groove design, can be easily striped, and splices for simplified installation and maintenance. Its Non-metallic strength members FRP provide tensile strength without the risk of electrical interference.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
Fiber Mode | Multimode OM3 |
| Fiber Count | 6 Core |
| Cable structure | Flat type |
Strength Member | 2xFRP |
Cable Diameter | 6.5*8.5mm |
Cable Jacket | LSZH |
Cable Color | Black |
Cable length | As per the order request |
OPTICAL PERFORMANCE | |
Attenuation(dB/km) | 850nm≤3.0dB 1300nm ≤1.0dB |
Core diameter(um) | 50±2.5 |
Cladding diameter(um) | 125±1.0 |
| Wavelength | 850nm / 1300nm |
| Operating Temperature | -20~75deg |
| Storage Temperature | -40~80deg |
Check the ordering information to find what you are looking for.
Please Contact Us freely if you need any help.
Download Datasheet
| Indoor Fiber Optic Flat Drop Cable Multimode OM3- FDC Series |
Ordering Information
PART NO. | DESCRIPTION |
G-FDC-301 | Flat Type Indoor Fiber Drop Cable, OM3 50/125,1 Fiber, LSZH,Black |
G-FDC-302 | Flat Type Indoor Fiber Drop Cable, OM3 50/125,2 Fiber, LSZH,Black |
G-FDC-306 | Flat Type Indoor Fiber Drop Cable, OM3 50/125,6 Fiber, LSZH,Black |
G-FDC-312 | Flat Type Indoor Fiber Drop Cable, OM3 50/125,12 Fiber, LSZH,Black |
* Customized | |
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
