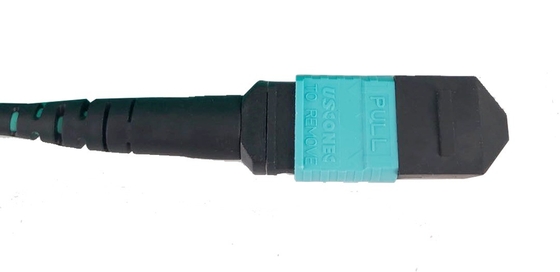

OM4 12 Strand MPO Fiber Patch Cable Female 1m Type B 3.0mm Aqua

Name: OM4 12 Strand MPO Fiber Patch Cable Female 1m Type B 3.0mm Aqua
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G274-P1112-1
Availability: InStock

Brand Name:	GoreLink
Model Number:	G274-P1112-1
MOQ:	1 Piece
Delivery Time:	1-3 Working days
Payment Terms:	T/T,Paypal,Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

RoHS,REACH

Product:

12 Strand MPO Fiber Optic Cable

Part Number:

G274-P1112-1

Fiber Count:

12 Strand

Connector:

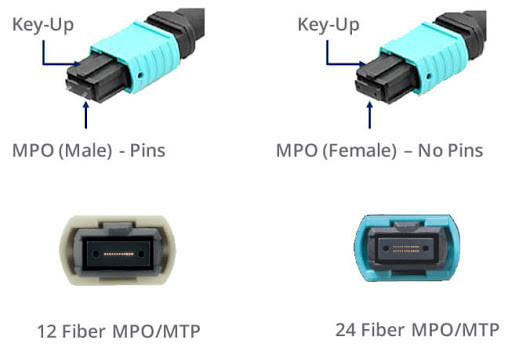

MPO-12 (Female)

Fiber Type:

Multimode OM4

Length:

Jacket:

OFNP

Polarity:

Type B

Diameter:

3.0mm

Insertion Loss:

≤0.35dB

Return Loss:

≥30dB

Wavelength:

850nm,1300um

Packaging Details:

Neutral Bag/GoreLink Bag

Highlight:

OM4 Armored Fiber Patch Cable

12 Strand Armored Fiber Patch Cable

12 Strand Multimode Fiber Patch Cable

Product Description

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Multimode OM4 50/125um
Fiber Count	12 Fibers
Connector A	MPO 12 Female
Connector B	MPO 12 Female
Wavelength	850nm/1300nm
Polish Way	PC
Cable Diameter	3.0mm
Cable Color	Aqua
Cable Jacket	OFNP
Method	Type B
Cable length	As per the order request
OPTICAL PERFORMANCE
Insertion Loss(IL)	≤0.35 dB (Low loss)
Return Loss(RL)	≥30dB
40/100G Ethernet Distance	150m @850nm
10G Ethernet Distance	400m @850nm
Operating Temperature	-10 to +70℃
Storage Temperature	0 to +60℃

OM4 12 Strand MPO Fiber Patch Cable Female 1m Type B 3.0mm Aqua 0

Ordering Information

PART NO.	DESCRIPTION
G274-P1112-1	Fiber Optic Cable,12Core,MPO/Female to MPO/Female, MM-50/125,OM4, OFNP, Aqua,1Mtr,3.0mm,Type B
G274-P1112-2	Fiber Optic Cable,12Core,MPO/Female to MPO/Female, MM-50/125,OM4, OFNP, Aqua,2Mtr,3.0mm,Type B
G274-P1112-3	Fiber Optic Cable,12Core,MPO/Female to MPO/Female, MM-50/125,OM4, OFNP, Aqua,3Mtr,3.0mm,Type B
G274-P1112-5	Fiber Optic Cable,12Core,MPO/Female to MPO/Female, MM-50/125,OM4, OFNP, Aqua,5Mtr,3.0mm,Type B
G274-P1112-7	Fiber Optic Cable,12Core,MPO/Female to MPO/Female, MM-50/125,OM4, OFNP, Aqua,7Mtr,3.0mm,Type B
G274-P1112-10	Fiber Optic Cable,12Core,MPO/Female to MPO/Female, MM-50/125,OM4, OFNP, Aqua,10Mtr,3.0mm,Type B
* Customized

If you need any more help, please feel free to contact us at sales@gorelink.com .
