| Brand Name: | GoreLink |
| Model Number: | GC-U6A26-BL-1 |
| MOQ: | Negotiable |
| Delivery Time: | 10-15 Working days |
| Payment Terms: | T/T, Western Union,Paypal |

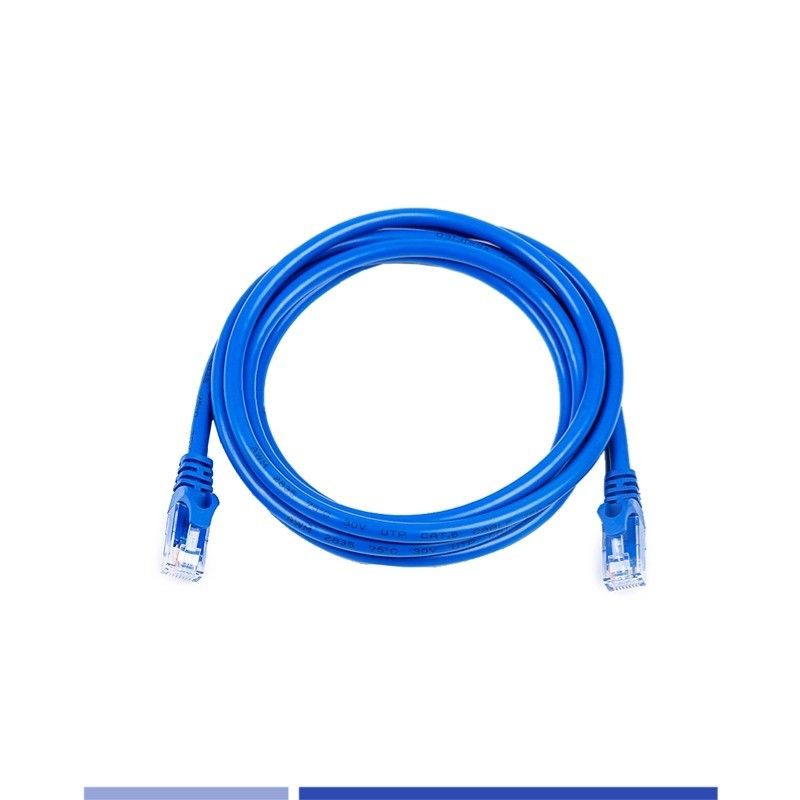

Patch Cable, Cat6A, 4 Pair,Stranded Copper, UTP, PVC, Blue, 10Mtr
Gorelink Category 6A (Unshielded U/UTP) is designed to 10Gigabit Ethernet applications is ideal for voice, data, video and security communication mediums for all your network- installation requirements. This Cat6A (Enhanced Category 6) patch leads consist of 4 twisted pairs of 26 AWG stranded copper wires. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 plugs terminate the cable, and each lead is fitted with colour coded moulded boots, suitable for use in high density router or switch blades.
Application
ATM
10 Gigabit Ethernet
Data center
PoE Applications
Rated for any 10G Base-T Ethernet.
Perfect for data center and SMB applications.
Ideal for switches, servers, patch panels, or other equipment.
General Specification
Category | Cat6A |
Cable Type | UTP |
Conductor | Stranded Copper |
Conductor Gauge(AWG) | 26AWG |
Termination | RJ45 |
Jacket | PVC (LSZH available) |
Color | Blue |
Length | 1m |
Operation temperature | 0 to 70°C |
Storage Temperature | -40 to 85°C |
Relative Humidity | 5% to 95% |
Technical Characteristics | |
Data Rate Support | 10G Base-T |
Standard Bandwidth (MHz) | 500MHz |
Impedance (Ω) | 100 ± 15 |
Max. DC Conductor Resistance Unbalance (%) | 5.0 |
1-250MHz, Delay Skew 20℃ (ns/100m) | ≤45 |
Max. DC Resistance 20℃ (Ω/100m) | 9.38 |
Before Aging Tensile Strength (Mpa) | ≥13.5 |
After Aging Tensile Strength (Mpa) | ≥12.5 |
Ordering Information
PART NO. | DESCRIPTION |
GC-U6A26-BL-1 | Gorelink UTP CAT6A PATCH CORD, 26AWG, COPPER, PVC JACKET, Blue, 1m |
GC-U6A26-BL-2 | Gorelink UTP CAT6A PATCH CORD, 26AWG, COPPER, PVC JACKET, Blue, 2m |
GC-U6A26-BL-3 | Gorelink UTP CAT6A PATCH CORD, 26AWG, COPPER, PVC JACKET, Blue, 3m |
GC-U6A26-BL-5 | Gorelink UTP CAT6A PATCH CORD, 26AWG, COPPER, PVC JACKET, Blue, 5m |
GC-U6A26-BL-10 | Gorelink UTP CAT6A PATCH CORD, 26AWG, COPPER, PVC JACKET, Blue, 10m |
GC-U6A26-BL-15 | Gorelink UTP CAT6A PATCH CORD, 26AWG, COPPER, PVC JACKET, Blue, 15m |
GC-U6A26-BL-20 | Gorelink UTP CAT6A PATCH CORD, 26AWG, COPPER, PVC JACKET, Blue, 20m |
* Customized | |
If you have any further questions, please feel free to contact us by sales@gorelink.com
|
|
