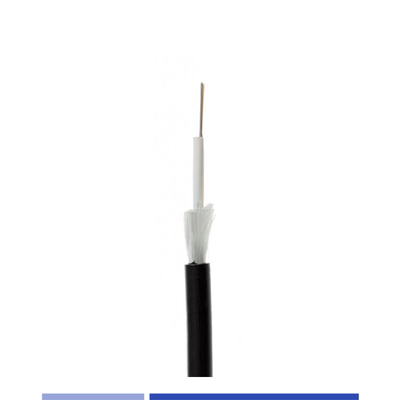

OM3 Indoor/Outdoor Fiber Optic Cable 24 Fiber LSZH Jacket Optic Cable

Name: OM3 Indoor/Outdoor Fiber Optic Cable 24 Fiber LSZH Jacket Optic Cable
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-IO-324L
Availability: InStock

Brand Name:	GoreLink
Model Number:	GL-IO-324L
MOQ:	Negotiable
Delivery Time:	As per the order quantity
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,RoHS,REACH

Features:

Light Weight & Reduced-Diameter

Product Name:

Indoor/Outdoor Fiber Optic Cable

Applications:

Indoor/Outdoor Application

Part Number:

GL-IO-324L

Fiber Type:

Multimode OM3

Fiber Count:

24 Fiber

Cable Design:

Central Loose Tube

Jacket Material:

LSZH

Color:

Black

OD:

6.0mm±0.5mm

Operating Temperature:

-20℃ To 75℃

Packaging Details:

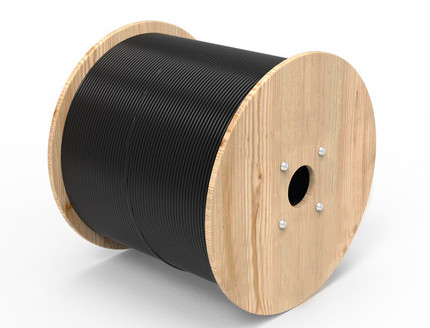

Wooden Drum/Spool+Carton

Highlight:

Multimode OM3 Indoor Fiber Optic Cable

CCTV Networks Indoor Fiber Optic Cable

Multimode OM3 24 Fiber Optic Cable

Product Description

What is Indoor outdoor fiber optic cable? Indoor/outdoor fiber optic cable is designed for installations where the cable needs to pass through both indoor and outdoor environments. This Indoor/outdoor Fiber Optic Cable offers a reliable, efficient, cost-effective solution for modern communication infrastructure needs. Their ability to seamlessly transition between indoor and outdoor environments makes them a versatile choice for various applications, from commercial buildings and data centers to industrial complexes and telecom networks. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. It is lightweight and reduced-diameter. Its durable design allows it to withstand installations and operations.

Indoor/Outdoor Fiber Optic Cable Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification of Indoor/Outdoor Fiber Optic Cable

Fiber Mode	Multimode OM3
Fiber Count	24 Core
Cable structure	Central loose tube
Strength Member	Glass Yarn
Cable Diameter	6.0mm±0.5mm
Cable Jacket	LSZH
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	850nm≤3.0dB 1300nm ≤1.0dB
Core diameter(um)	50/125um
Cladding diameter(um)	125
Wavelength	850nm / 1300nm
Operating Temperature	-20~75℃
Storage Temperature	-40~80℃

OM3 Indoor/Outdoor Fiber Optic Cable 24 Fiber LSZH Jacket Optic Cable 0

Ordering Information

PART NO.	DESCRIPTION
GL-IO-302L	Indoor/Outdoor Fiber Optic Cable, 2 Fiber, MM OM3,LSZH,Black
GL-IO-304L	Indoor/Outdoor Fiber Optic Cable, 4 Fiber, MM OM3,LSZH,Black
GL-IO-306L	Indoor/Outdoor Fiber Optic Cable, 6 Fiber, MM OM3,LSZH,Black
GL-IO-308L	Indoor/Outdoor Fiber Optic Cable, 8 Fiber, MM OM3,LSZH,Black
GL-IO-312L	Indoor/Outdoor Fiber Optic Cable, 12 Fiber,MM OM3,LSZH,Black
GL-IO-324L	Indoor/Outdoor Fiber Optic Cable, 24 Fiber,MM OM3,LSZH,Black
* Customized
