| Brand Name: | GoreLink |
| Model Number: | G148-106 |
| MOQ: | 1000m |
| Delivery Time: | As per the order quantity |
| Payment Terms: | T/T,Paypal,Western Union |

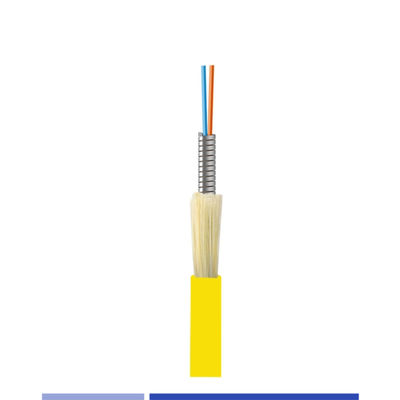

Indoor Armored Fiber Optic Cable,6 Fiber, Singlemode G652D, LSZH
Gorelink Indoor armored fiber optic cables are designed for being used in indoor environment, in which the traditional standard fiber optic patch lead can not perform structurally to the requirement. Its structure contains stainless steel armor inside the jacket, this will help make it resistant of high tension and pressure. The stainless steel tube prevents optic fiber from damage which improves the stability of the system.
It contains 12 tight-buffered fiber bundled under the same jacket with spiral steel tube as strength members to stiffen the cable and prevent kinking.Its durable design allows it to withstand installations and operations..
It is widely used for data centers or Central Office applications point-to-point connections. The strands are color-coded for easy identification and installation.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
Fiber Mode | Singlemode 9/125um OS2 |
| Cable structure | 900um±0.05 Tight-buffered |
Fiber Count | 6 Core |
Strength Member | Spiral Stainless steel tube + Aramid Yarn |
Cable Diameter | 4.4±0.2 mm |
Cable Color | Yellow |
Cable Jacket | LSZH |
Cable length | As per the order request |
OPTICAL PERFORMANCE | |
Attenuation(dB/km) | ≤0.35 dB @1310nm |
Core diameter(um) | 9±2.5 |
Cladding diameter(um) | 125±1.0 |
| Wavelength | 1310nm / 1550nm |
Ordering Information
PART NO. | DESCRIPTION |
G148-106 | Indoor Armored Fiber Distribution Cable,6 Fiber,Singlemode G652D,LSZH,Yellow |
* Customized | |
If you need any further questions, please feel free to contact us by sales@gorelink.com
|
|
