| Brand Name: | GoreLink |
| Model Number: | G118-112 |
| MOQ: | 1000m |
| Delivery Time: | As per the order quantity |
| Payment Terms: | T/T,Paypal,Western Union |

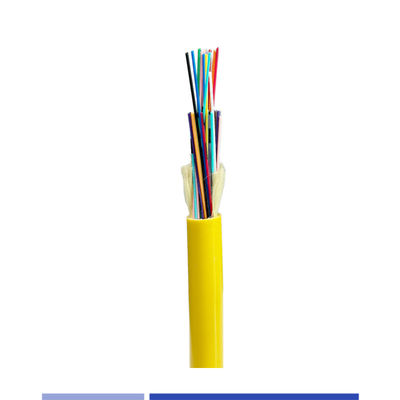

Indoor distribution fiber cable is used for indoor applications where consistency and uniformity are essential.It contains 24 tight-buffered fiber bundled under the same jacket with aramid yarn as strength members to stiffen the cable and prevent kinking.Its durable design allows it to withstand installations and operations.
With aramid yarn as a reinforcing member, the cable is light weight, soft and easy to peel. It is widely used for data centers or Central Office applications, as well as point-to-point connections. The strands are color-coded for easy identification and installation.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
Fiber Mode | Singlemode 9/125um OS2 |
| Cable structure | 0.9mm±0.05 Tight-buffered |
Fiber Count | 12 Core |
Strength Member | Aramid Yarn |
Cable Diameter | 6.5±0.05 mm |
Cable Color | Yellow |
Cable Jacket | LSZH |
Cable length | As per the order request |
OPTICAL PERFORMANCE | |
Attenuation(dB/km) | ≤0.35 dB @1310nm |
Core diameter(um) | 9±2.5 |
Cladding diameter(um) | 125±1.0 |
| Wavelength | 1310nm / 1550nm |
Ordering Information
PART NO. | DESCRIPTION |
G118-112 | Indoor Fiber Optic Cable,12 Fiber,Singlemode G652D,LSZH,Yellow |
* Customized | |
|
