| Brand Name: | GoreLink |
| Model Number: | G529-481 |
| MOQ: | 1pc |
| Delivery Time: | 1-3 Working days |
| Payment Terms: | T/T, Western Union,Paypal |

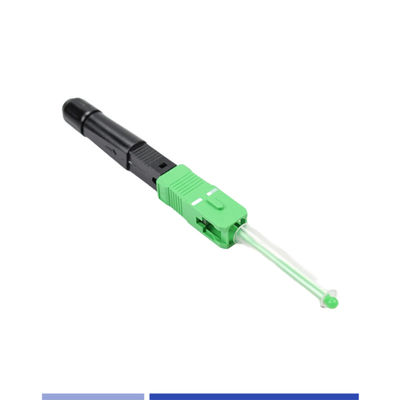

Fiber Fast connector is also called quick connector, field-assembled fiber optical active connector. A Fiber Fast Connector is a type of fiber optic connector designed to simplify and speed up the process of connecting fiber optic cables. It is often used for field installations and repairs where quick and reliable terminations of fiber optic cables are necessary. These connectors are engineered to eliminate the need for traditional splicing or epoxy-based bonding methods, allowing technicians to make connections rapidly without the need for specialized training or equipment.
It accommodates a reliable and durable optical network especially suitable for advanced fiber optic systems requiring exceptional stability and low loss.There are SC/UPC and SC/APC for your choice.The cable clamp is a specially designed tool to help user to strip the fiber coating to the preset length. It has a ruler on itself to help user to strip to preset length effectively.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
Key Features
General Specification
|
Parameters |
|
|
Fiber Mode |
Singlemode |
|
Polishing |
APC |
|
Applicable Cable |
3.0mm 2.0*3.0mm Drop cable |
|
Insert Loss (dB) |
Max.≤0.5dB, Typical≤0.3dB |
|
Return Loss (dB ) |
UPC: Max -40dB, Typical -45dB APC: Max -50dB, Typical -55dB |
|
Tensile Strength (N) |
>50 |
|
Operating Temperature (°C) |
-20 ~ +75 |
|
Storage Temperature (°C) |
-40 ~ +85 |
|
Re-Operation Times |
Max. 5 times |
|
Circulatory Test During High-low Temperature (dB) |
IL ≤ 0.3dB, RL ≤ 5dB |
|
Vibration and Impaction (dB) |
IL ≤ 0.3dB, RL≤ 5dB |
|
High Temperature and Humidity Test (85°C/85%H) |
IL ≤ 0.3dB, RL≤ 5dB |
Download Datasheet
| Fiber Optic Fast Connectors-SC Series |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
G529-481 |
Fusion splice on Fiber Optic Fast Connector,SC/APC Singlemode |
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
