| Brand Name: | GoreLink |
| Model Number: | G705-12LC-901 |
| MOQ: | Negotiable |
| Delivery Time: | 1-7 Working days |
| Payment Terms: | T/T, Western Union,Paypal |

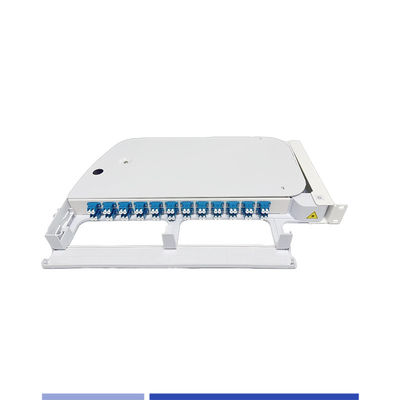

Gorelink offers a variety of fiber patch panels. The rack-mounted fiber patch panel is a hardware unit that houses fiber optic connectors and facilitates the termination, connection, and management of fiber optic cables. It is designed to be mounted on a standard 19-inch server rack or network cabinet, providing an organized and secure way to manage fiber optic connections.There are 12 port,24 port for your choice.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Parameters |
|
|
Design |
Top open cover |
|
Material |
ABS with cold-rolled steel bracket mounting |
|
Mounting Type |
19" Rack Mounted |
|
Capacity |
24 Fibers |
|
No. Of Rack Unit |
1U |
|
No. Of Tray |
1x24F |
|
Capacity of Tray |
24F |
|
Adapter |
LC/SC available |
|
Loaded |
LC/UPC SM Simplex adapter |
|
Insertion Loss |
≤ 0.3dB |
|
Return Loss |
≥ 55dB |
|
Color |
Grey |
|
Dimension |
483x280.4x1U(44.5)mm |
|
Operating Temperature (°C) |
-20 ~ +75 |
|
Storage Temperature (°C) |
-40 ~ +85 |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
G705-12LC |
12 Port Fiber Optic patch panel, LC/UPC Simplex(12 Fibers),1U,19" Rack Mounted,Unloaded adapter and pigtails |
|
G705-12LC-902 |
12 Port Fiber Optic patch panel, LC/UPC Simplex(12 Fibers),1U,19" Rack Mounted,Loaded LC/UPC SM Simplex adapter and pigtail |
|
G705-24LC |
12 Port Fiber Optic patch panel, LC/UPC Duplex(24 Fibers),1U,19" Rack Mounted,Unloaded adapter and pigtails |
|
G705-24LC-902 |
12 Port Fiber Optic patch panel, LC/UPC Duplex(24 Fibers),1U,19" Rack Mounted,Loaded LC/UPC SM Duplex adapter and pigtail |
|
* Customized |
|
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
