| Brand Name: | GoreLink |
| Model Number: | G812-24SC |
| MOQ: | Negotiable |
| Delivery Time: | 1-7 Working days |
| Payment Terms: | T/T, Western Union,Paypal |

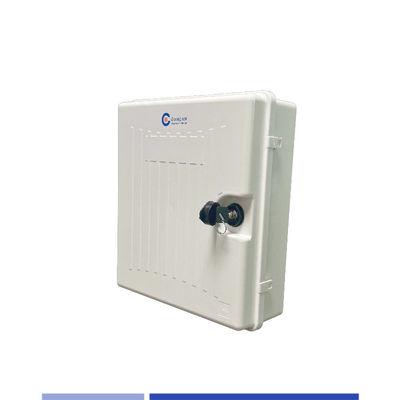

Gorelink Fiber Distribution Box integrates optical fiber splicing, splitting, and wiring, it is designed to a termination point for the feeder cable to connect with drop cable in FTTx communication network system. Its waterproof design can be used indoor or outdoor environment. It can be used to protect the connection between cable and pigtail and optic fiber terminations in the optic access network. It can be wall mounting or pole mounting installation. Also It is suitable for 1:8, 1:16, 1:32 insert- type splitter as well as direct splicing in splice tray connection. It provides a safe and organized way to connect fiber optic cables to devices such as routers, switches, and other networking equipment.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Design |
Fiber Wall-Mount Distribution Box |
|
Material |
ABS |
|
Mounting Type |
Wall Mounting |
|
Capacity |
24 Fibers (Splicing) |
|
Suitable Cable |
Φ6- Φ12mm |
|
Suitable Adapter |
LC/SC |
|
Loaded |
As per the requirements |
|
Insertion Loss |
≤ 0.3dB |
|
Return Loss |
≥ 55dB |
|
Color |
Grey |
|
Operating Temperature (°C) |
-20 ~ +75 |
|
Storage Temperature (°C) |
-40 ~ +85 |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
G812-24SC |
24 Port Fiber Optic Distribution Box, SC Simplex, unloaded |
|
G812-24SC-901 |
24 Port Fiber Optic Distribution Box, SC Simplex, Loaded SC/UPC SM Simplex Adapter |
| * Customized | |
If you need any more help, please feel free to contact us at sales@gorelink.com
|
|
