| Brand Name: | GoreLink |
| Model Number: | GC-PP01-648 |
| MOQ: | Negotiable |
| Delivery Time: | 1-7 Working days |
| Payment Terms: | T/T, Western Union,Paypal |
Application
Premise wiring
Voice/Data
Local Area Networks
Suitable for systems with a high level of noise and interference
Applied in Category 6 connection
General Specification
|
Category |
Cat6 |
|
Structure |
Unshielded |
|
Port |
48 Port |
|
Connection Type |
110 |
|
RJ45 Housing |
PBT+15% GF UL 94V-0 |
|
RJ45 Contact |
Material: PC UL 94V-0 |
|
Suitable Cable wire |
22-26AWG |
|
Technical Characteristics |
|
|
Voltage Rating |
125 VAC RMS |
|
Current Rating |
1.5 AMP |
|
Contact Resistance |
Max. 100 Milliohms |
|
Dielectric Strength |
750 VAC RMS 60Hz,1Min |
|
Jack Life |
750 Times Min. |
|
Operation temperature |
0 to 70°C |
|
Storage Temperature |
-40 to 85°C |
|
Relative Humidity |
5% to 95% |
Download Datasheet
Ordering Information
|
PART NO. |
DESCRIPTION |
|
GC-PP01-648 |

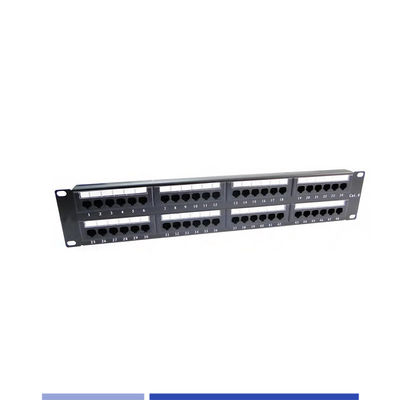

Gorelink UTP Cat6 48 port patch panel,2U,Rack mounted, with cable bar |
|
* Customized |
|
If you have any further questions, please feel free to contact us by sales@gorelink.com
|
|
