1U 48 Port Modular Patch Panel Shielded For Cat.6/Cat6A Jack

Name: 1U 48 Port Modular Patch Panel Shielded For Cat.6/Cat6A Jack
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GC-PP07-48
Availability: InStock

Brand Name:	GoreLink
Model Number:	GC-PP07-48
MOQ:	Negotiable
Delivery Time:	1-7 Working days
Payment Terms:	T/T, Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Features:

Fits Standard 19" Racks And Cabinet

Product:

48 Port Modular Patch Panel

Compatibility:

Compatible With TIA/EIA 568A And 568B Wiring Standards

Part Number:

GC-PP07-48

Port:

48 Port

Shielding:

Shielded

Connector Type:

RJ45

Rack Of Unit:

Mounting:

19" Rack Mount

Material:

SPCC Cold Rolled Steel

Color:

Black

Standard:

TIA/EIA 568-A/B Standards

Termination Type:

110 IDC

Operating Temperature:

0°C To 60°C

Package Contents:

Patch Panel, Mounting Screws, Cable Ties

Packaging Details:

20pcs/Box

Highlight:

1U 48 Port Modular Patch Panel

Shielded 48 Port Modular Patch Panel

Cat6A 48 Port Fiber Patch Panel

Product Description

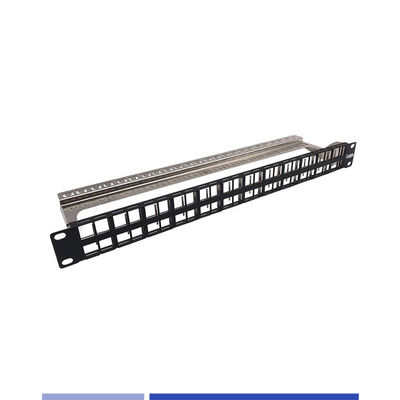

1U 48 Port Modular Patch Panel, Shielded, Suitable for Cat.6/Cat6A Jack

Gorelink 1U Blank patch panel,also called Modular Patch Panel, accommodates virtually any standard snap-in/keystone jacks and mounts to any EIA standard 19" racks, patch panel brackets or cabinets. It can be used for mounting of the range of unshielded or Shielded keystone jacks. It is suitable for Cat.6 or Cat6A 180 degree keystone jacks. A rear management bar with purposely designed cable tie positions, is supplied with each panel which is fitted without the need for any tools or fixings by simply snapping it into place.

Application

Premise wiring
Voice/Data
Local Area Networks
Suitable for systems with a high level of noise and interference
Applied in Category 6 connection

General Specification

Category	Depend on Keystone Jack
Structure	Unshielded
Port	48 Port
Connection Type	110
RJ45 Housing	PBT+15% GF UL 94V-0
RJ45 Contact	Material: PC UL 94V-0 Phosphor Bronze with 50-60 micro-inch Nickel Plated Contact Min.3mm 50Mio-inch Gold Plated
Suitable Cable wire	22-26AWG
Technical Characteristics
Voltage Rating	125 VAC RMS
Current Rating	1.5 AMP
Contact Resistance	Max. 100 Milliohms
Dielectric Strength	750 VAC RMS 60Hz,1Min
Jack Life	750 Times Min.
Operation temperature	0 to 70°C
Storage Temperature	-40 to 85°C
Relative Humidity	5% to 95%

1U 48 Port Modular Patch Panel Shielded For Cat.6/Cat6A Jack 0

Download Datasheet

Unshielded Modular Patch Panels

Ordering Information

PART NO.	DESCRIPTION
GC-PP07-48	Gorelink 1U 19" 48 port Modular Blank Patch Panel,Shielded,with cable bar,Unloaded Jack
* Customized

If you have any further questions, please feel free to contact us by sales@gorelink.com
