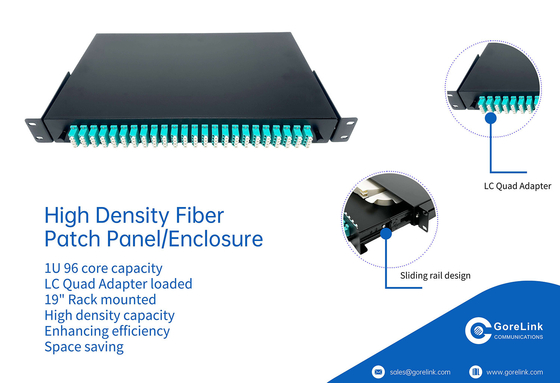

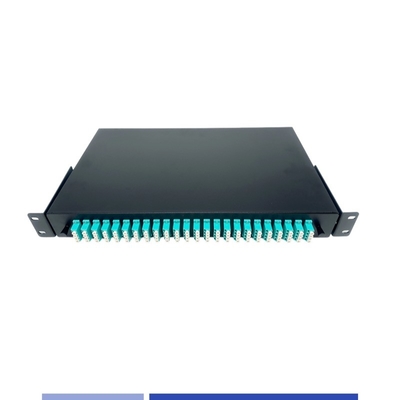

1U 96 core Fiber Optic patch panel LC Quad port 19" Rack Mounted Loaded LC OM3 Quad Adapter

Name: 1U 96 core Fiber Optic patch panel LC Quad port 19" Rack Mounted Loaded LC OM3 Quad Adapter
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G703-96LC-401
Availability: InStock

Brand Name:	GoreLink
Model Number:	G703-96LC-401
MOQ:	Negotiable
Delivery Time:	1-7 Working days
Payment Terms:	T/T, Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS,REACH

Product:

Fiber Optic Patch Panel

Application:

FTTH FTTB FTTX Network

Part Number:

G702-96LC-401

Product Type:

Slide-out Drawer Type

Material:

Cold-rolled Steel

Ports:

Adapter Type:

LC Quad

Capacity:

96 Fibers

Rack Units:

1.5U

Mounting:

19" Rack Mounted

Dimension:

480* 300*1.5U

Working Temperature:

-20℃~75℃

Storage Temperature:

-40~+85℃

Packaging Details:

1pcs/box, 5pcs/ctn

Product Description

A patch panel is a piece of networking hardware that contains multiple ports to connect different Ethernet cables. The patch panel Supports various connector types (e.g., SC, LC, ST) via interchangeable adapters, accommodating diverse network needs. Generally, there are 12 port,24 port,48 port and 96 port. It is designed to be mounted on a standard 19-inch server rack or network cabinet, providing an organized and secure way to manage fiber optic connections.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Parameters

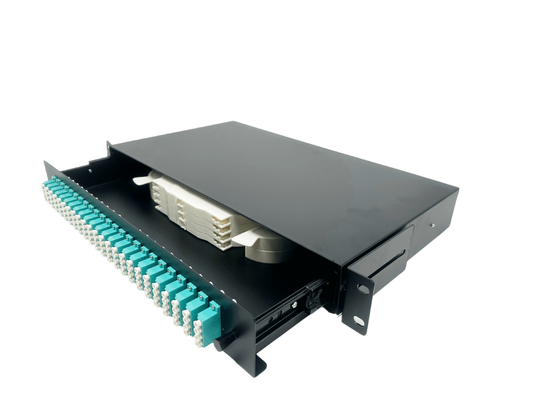

Design	Sliding Rail
Material	Cold rolled steel sheet
Mounting Type	19" Rack Mounted
Capacity	96Fibers
No. Of Rack Unit	1U
No. Of Tray	2x24F
Capacity of Tray	24F
Adapter	LC Quad Port
Loaded	LC/UPC OM3 Quad adapter
Insertion Loss	≤ 0.3dB
Return Loss	≥ 55dB
Color	Black
Dimension	483x300x1.5Umm
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

1U 96 core Fiber Optic patch panel LC Quad port 19" Rack Mounted Loaded LC OM3 Quad Adapter 0

Download Datasheet

19" Rack Mounted 1U Fiber Patch Panel -G702 series

Ordering Information

PART NO.	DESCRIPTION
G703-96W	24 Port Fiber Optic patch panel,1U,19" Rack Mounted,Sliding rail,Unloaded adapter plate
G703-96LC	24 Port Fiber Optic patch panel, LC/PC Quad(96 Fibers),1U,19" Rack Mounted,Sliding rail,Unloaded adapter and pigtails
G703-96LC-301	24 Port Fiber Optic patch panel,LC/PC Quad(96 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded LC/UPC OM3 Quad adapter
G703-96LC-302	24 Port Fiber Optic patch panel,LC/PC Quad(96 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded LC/UPC OM3 Quad adapter and pigtail
G703-96LC-401	24 Port Fiber Optic patch panel, LC/PC Quad(96 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded LC/UPC OM4 Quad adapter
G703-96LC-402	24 Port Fiber Optic patch panel, LC/PC Quad(96 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded LC/UPC OM4 Quad adapter and pigtail
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
