24 Port Fiber Wall Box Indoor design for LC/SC Adapter 24 Core Fiber enclosure with double door unloaded

Name: 24 Port Fiber Wall Box Indoor design for LC/SC Adapter 24 Core Fiber enclosure with double door unloaded
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G819-24SC
Availability: InStock

Brand Name:	GoreLink
Model Number:	G819-24SC
MOQ:	Negotiable
Delivery Time:	1-7 Working days
Payment Terms:	T/T, Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS,REACH

Part No.:

G819-24SC

No. Of Port:

24 Ports

Material:

Cold-rolled Steel

Application:

Indoor Use

Suitable Adapter:

SC/LC

Capacitry:

24 Core

Adapter Type:

Simplex/Duplex

Cable Diameter:

≤Φ16mm

Mounting Way:

Wall Mounted

Lock Compatible:

Screws

Operating Temperature:

-20℃ To 75℃

Color:

Grey Or Customized

OEM:

Yes

Packaging Details:

1pcs/box

Product Description

Fiber Wall Box, also known as fiber termination box (FTB), is a compact fiber management product of small size. Fiber Wall Box integrates optical fiber splicing, splitting, and wiring, it is designed to a termination point for the feeder cable to connect with drop cable in an FTTx communication network system. It provides a safe and organized way to connect fiber optic cables to devices such as routers, switches, and other networking equipment. Fiber Optic Boxes are used to connect fibers in various FTTx network points.

It can be used indoor environment. The fiber wall box can be wall mounting or pole mounting installation.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Design	Fiber Wall Mount Box
Material	Cold-rolled steel
Mounting Type	Wall / Pole Mounting
Capacity	24Fibers (Splicing)
Suitable Cable	≤Φ16mm
Suitable Adapter	LC/SC
Loaded	According to the requirement
Insertion Loss	≤ 0.3dB
Return Loss	≥ 55dB
Color	Grey
Dimension	35035080mm
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

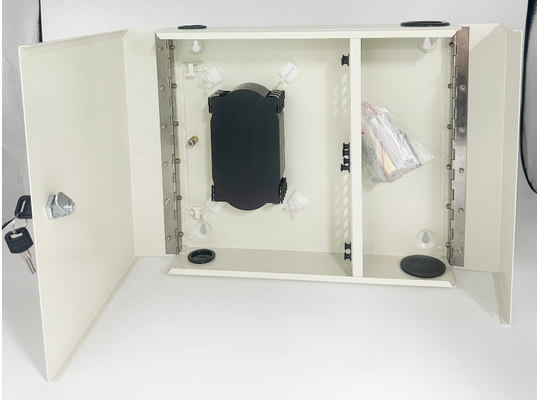

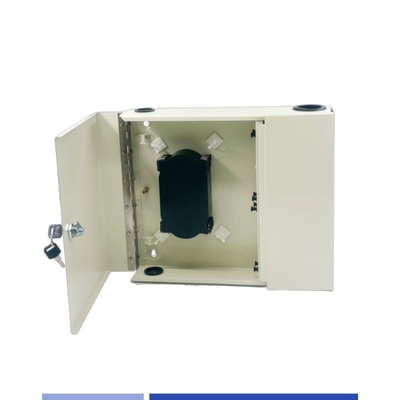

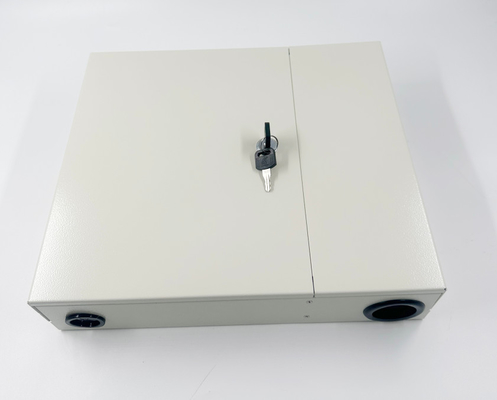

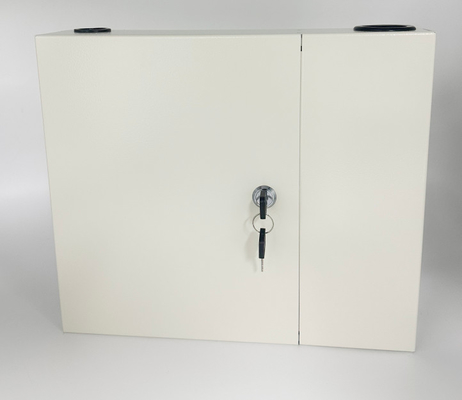

24 Port Fiber Wall Box Indoor design for LC/SC Adapter 24 Core Fiber enclosure with double door unloaded 0

24 Port Fiber Wall Box Indoor design for LC/SC Adapter 24 Core Fiber enclosure with double door unloaded 1

Download Datasheet

Fiber Optic Distribution Box- G819Series

Ordering Information

PART NO.	DESCRIPTION
G819-24SC	24 Fiber Fiber Optic Distribution Box, SC Simplex, unloaded
G819-24SC-901	24 Fiber Fiber Optic Distribution Box, SC Simplex, Loaded SC/UPC SM Simplex Adapter
* Customized
