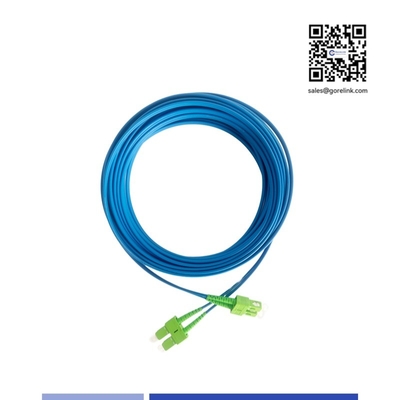

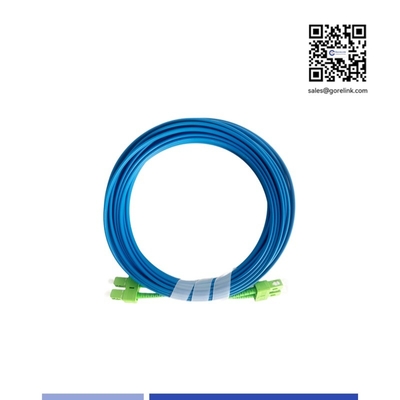

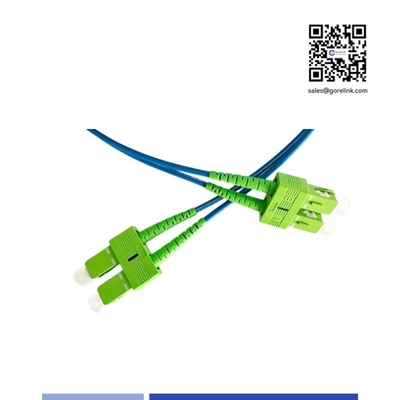

SC/APC Armored Fiber Patch Cord Singlemode Duplex 1m LSZH Jacket Anti-rodent

Name: SC/APC Armored Fiber Patch Cord Singlemode Duplex 1m LSZH Jacket Anti-rodent
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G228-2442-3
Availability: InStock

Brand Name:	GoreLink
Model Number:	G228-2442-3
MOQ:	1pc
Delivery Time:	1-3 Working days
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHS,REACH

Product:

Armored Fiber Optic Patch Cable

Application:

FTTA FTTH BBU RRU RRH LTE Base Station

Part Number:

G228-2442-3

Fiber Type:

Singlemode G652D

Connector:

SC-SC

Polish:

APC

Fiber Count:

Duplex

Length:

Jacket:

LSZH

Insertion Loss:

≤0.3dB

Return Loss:

≥50dB

Wavelength:

1310nm,1550nm

Quality Control:

100% Test Before Shipping

Packaging Details:

1pc/Polybag

Product Description

SC-SC Armored Fiber Optic Patch Cable, Singlemode Duplex,3m,LSZH jacket

Gorelink Amored fiber optic patch Cords are designed for being used in harsh environment, in which the traditional standard fiber optic patch lead can not perform structurally to the requirement. Its structure contains stainless steel armor inside the jacket, this will help make the armored fiber patch cord resistant of high tension and pressure and it is not easy to break when bent or dragged. The stainless steel tube prevents optic fiber from damage that improves stability of the system.

It is crush and rodent resistant without being bulky, heavy, or messy.Armored fiber optic patch cables are made with similar outer diameter to standard patch cables, making them both space saving and strong.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Singlemode 9/125um OS2
Connector	SC-SC
Cable structure	Duplex
Strength Member	Sprial steel with Aramid Yarn
Cable Diameter	3.0mm
Cable Color	Blue
Polishing Way	APC
Connector Color	Green	Black (ST,FC)
Cable Jacket	LSZH
Cable length	As per the order request
OPTICAL PERFORMANCE
Fiber Type	G.652D	G.657A	APC
Insertion Loss(IL)	≤0.3 dB	≤0.3 dB	≤0.25 dB
Return Loss(RL)	≥50dB(UPC)	≥50dB(UPC)	≥60dB(APC)

SC/APC Armored Fiber Patch Cord Singlemode Duplex 1m LSZH Jacket Anti-rodent 0

Ordering Information

PART NO.	DESCRIPTION
G228-2442-1	Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 1m
G228-2442-2	Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 2m
G228-2442-3	Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 3m
G228-2442-5	Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 5m
G228-2442-10	Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 10m
G228-2442-15	Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 15m
G228-2442-20	Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 20m
* Customized

If you need any more help, please feel free to contact us at sales@gorelink.com .
