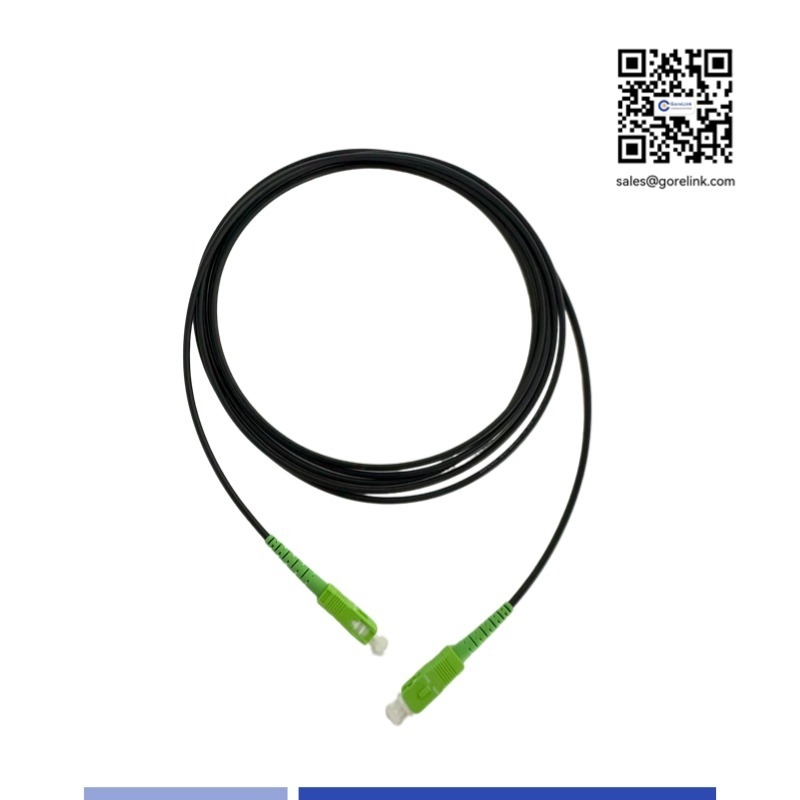

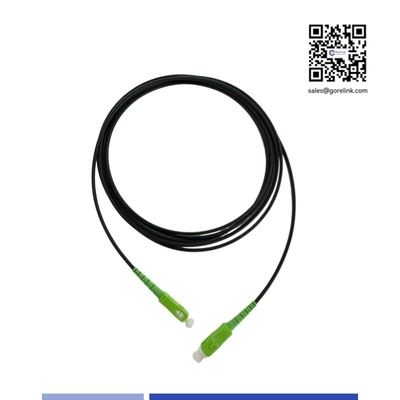

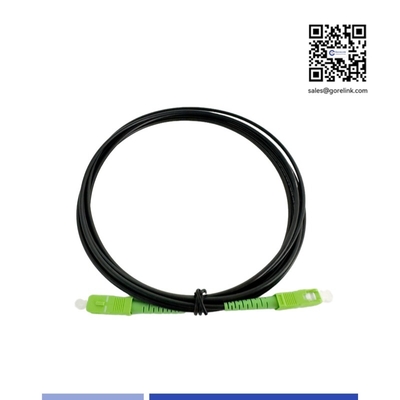

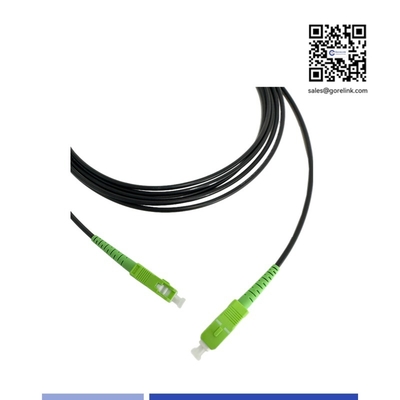

Outdoor Armored Fiber Optic Patch Cord SC/APC-SC/APC SM G657A2 Simplex 3m OFNR UV Jacket

Name: Outdoor Armored Fiber Optic Patch Cord SC/APC-SC/APC SM G657A2 Simplex 3m OFNR UV Jacket
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G268-7441-3
Availability: InStock

Brand Name:	GoreLink
Model Number:	G268-7441-3
MOQ:	1pc
Delivery Time:	1-3 Working days
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS,REACH

Product:

Outdoor Armored Fiber Optic Patch Cable

Part Number:

G268-7441-3

Fiber Type:

SM G657A2

Connector:

SC/APC-SC/APC

Polish:

APC

Fiber Count:

Simplex

Length:

3m Or Customized

Jacket:

OFNR

Insertion Loss:

≤0.3dB

Return Loss:

≥60dB

Quality Control:

100% Test Before Shipping

Wavelength:

1310nm,1550nm

Color:

Black Or Cusomized

Packaging Details:

1pc/Polybag

Highlight:

Outdoor armored fiber optic cable

SC/APC fiber patch cord

UV resistant fiber optic cable

Product Description

SC/APC-SC/APC Outdoor Armored Fiber Optic Patch Cable, Singlemode G657A2, Simplex,3m,OFNR Jacket
Outdoor armored fiber optic patch Cords are designed for use in harsh environments, where the traditional standard fiber optic patch lead can not perform structurally to the requirements. Its structure contains stainless steel armor inside the jacket, which will help make the armored fiber patch cord resistant of high tension and pressure, and it is not easy to break when bent or dragged. The stainless steel tube prevents optical fiber from damage, that improves the stability of the system.
It is crush and rodent resistant without being bulky, heavy, or messy.Armored fiber optic patch cables are made with similar outer diameter to standard patch cables, making them both space-saving and strong.

Outdoor Armored Fiber Patch Cord Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

Outdoor Armored Fiber Patch Cord Key Features

Armored Patch cord can be used directly in different harsh environments without additional protection.
It is flexible, anti-rodent, and pressure-resistant.
The structure is Anti-rodent ringed steel protection & External reinforced aramid yarn protection
High tensile strength, pressure resistant, rodent protected.
Easy handling, similar to an electrical cable and easy installation.
Low Insertion loss and high return loss
Available in SM/MM/OM3/OM4
Choice of connectors in SC/LC/ST/FC etc
UV protection
Jacket: OFNR or Customzied

Outdoor Armored Fiber Patch Cord Specification

Fiber Mode	Singlemode 9/125um G657A2
Connector	SC/APC-SC/APC
Cable structure	Simplex

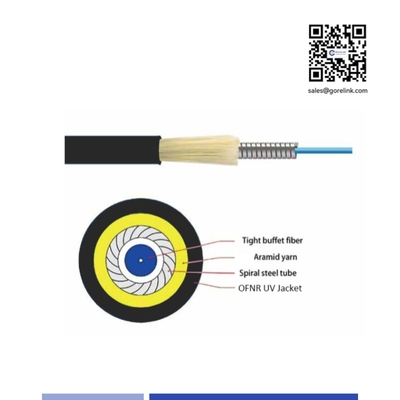

Strength Member	Spiral steel with Aramid Yarn
Cable Diameter	3.0mm
Cable Color	Black
Polishing Way	APC
Connector Color	Green
Cable Jacket	OFNR UV
Cable length	As per the order request
OPTICAL PERFORMANCE
Fiber Type	Singlemode G657A2 9/125um
Insertion Loss(IL)	≤0.3 dB
Return Loss(RL)	≥60dB
Attenuation(dB/KM)	1310nm≤0.36dB 1550nm≤0.3dB
Operating Temperature	-10 to + 70℃
Storage Temperature	-20 to + 70℃

Outdoor Armored Fiber Optic Patch Cord SC/APC-SC/APC SM G657A2 Simplex 3m OFNR UV Jacket 0

Ordering Information

PART NO.	DESCRIPTION
G268-9441-1	Armored Fiber patch cord,SC/APC-SC/APC Singlemode, G652D,Simplex,1m, OFNR
G268-9441-3	Armored Fiber patch cord,SC/APC-SC/APC Singlemode, G652D,Simplex,3m, OFNR
G268-9441-5	Armored Fiber patch cord,SC/APC-SC/APC Singlemode, G652D,Simplex,5m, OFNR
G268-9441-10	Armored Fiber patch cord,SC/APC-SC/APC Singlemode, G652D,Simplex,10m, OFNR
G268-9441-15	Armored Fiber patch cord,SC/APC-SC/APC Singlemode, G652D,Simplex,15m, OFNR
G268-9441-20	Armored Fiber patch cord,SC/APC-SC/APC Singlemode, G652D,Simplex,20m, OFNR

If you need any more help, please feel free to contact us at sales@gorelink.com .
