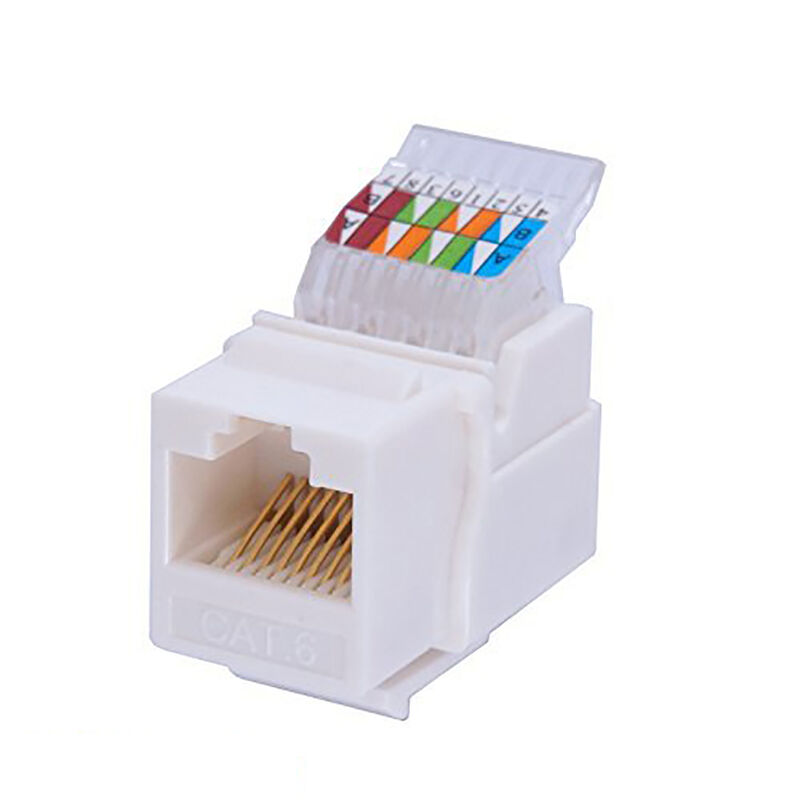

Cat6 UTP 90° Toolless Keystone Jack, RJ45 (8P8C), Unshielded

Name: Cat6 UTP 90° Toolless Keystone Jack, RJ45 (8P8C), Unshielded
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GC-KJ690T
Price: Negotiable USD
Availability: InStock

Brand Name:	GoreLink
Model Number:	GC-KJ690T
MOQ:	Negotiable
Delivery Time:	1-7 Working days
Payment Terms:	T/T, Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product:

Cat6 UTP 90° Toolless Keystone Jack, RJ45 (8P8C), Unshielded

Application:

Telecommunication,Networking

Part Number:

GC-KJ690T

Category:

Cat6

Shielding Type:

Unshielded

Connector Style:

90 Degree Toolless

Material:

ABS

Color:

White

Operating Temperature:

-10°C To +60°C

Packaging Details:

50pcs/box

Highlight:

Cat6 UTP toolless keystone jack

RJ45 8P8C unshielded keystone jack

90° Cat6 keystone jack

Product Description

Cat6 UTP 90° Toolless Keystone Jack — RJ45 (8P8C), Unshielded

The Cat6 Toolless Keystone Jack is a modular connector engineered for structured network cabling installations. It provides a standardized RJ45 interface for terminating twisted-pair Ethernet cables into wall plates, faceplates, or patch panels, delivering reliable Category 6 performance without the need for punch-down tools.

Applications

Premise wiring for commercial and residential buildings
Voice and data network connections
Local Area Network (LAN) infrastructure
Telecommunications — connecting and distributing telephone lines
Networking — organizing structured cabling in LAN setups
Building management — centralizing connections in multi-story buildings
Outdoor installations — distributing connections across residential or commercial areas

Key Features of Cat6 Keystone Jacks

Meets or exceeds Cat6A standards, supporting speeds up to 10 Gbps and frequencies up to 500 MHz
Backward compatible with Cat5e cables and devices
Modular snap-in design for quick installation in keystone wall plates or patch panels
Color-coded TIA/EIA 568A and 568B wiring diagrams for accurate termination
Compatible with both solid and stranded Cat6 cables
Fits standard keystone openings in faceplates and panels
Constructed from high-quality materials with gold-plated contacts for reliable data transmission and corrosion resistance

General Specifications

Compliance	Conforms to TIA/EIA 568B.2, ISO/IEC 11801:2002 CLASS E & ANSI/TIA/EIA 568B.2-1
Product Type	Unshielded Keystone Jack
Design	Toolless
Connector Type	RJ45 8P8C
Category	Category 6
Wire Compatibility	22–26 AWG
Housing	ABS UL-94-0
IDC Contact	Tin-plated phosphor bronze alloy
RJ45 Contact	Nickel-plated phosphor bronze alloy with selective gold plating
Voltage Rating	125 VAC RMS
Current Rating	1.5 A
Contact Resistance	100 milliohms max.
Insulation Resistance	1000 megohms min. @ 500 VDC
Dielectric Strength	750 VAC RMS 60 Hz, 1 min.
RJ45 Jack Life	750 cycles min.
IDC Life	200 cycles min.
Storage Temperature	-40 °C to 70 °C
Operating Temperature	-10 °C to 60 °C

Download Datasheet

Unshielded Cat6 Toolless Keystone Jack — technical datasheet available on request.

Ordering Information

Part No.	Description
GC-KJ690T	UTP Cat6 Keystone Jack, Toolless, 90 degree, White
Customized configurations available upon request.
