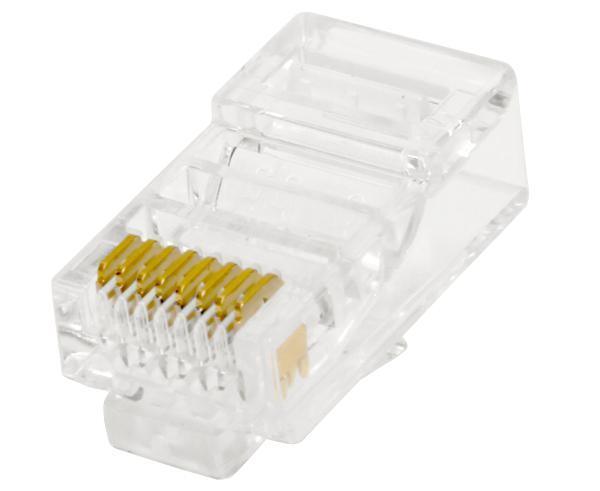

Cat6 UTP RJ45 Modular Plug

Name: Cat6 UTP RJ45 Modular Plug
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GC-RJ45-U63
Price: Negotiable USD
Availability: InStock

Brand Name:	GoreLink
Model Number:	GC-RJ45-U63
MOQ:	In stock
Delivery Time:	1-7 Working days
Payment Terms:	T/T, Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product:

Cat6 UTP RJ45 Modular Plug

Application:

Telecommunication,Networking

Part Number:

GC-RJ45-U63

Category:

Cat6

Shielding Type:

Unshielded

Connector Interface:

RJ45 Male(8P8C)

Connector Design:

Standard

Material:

Contact Plating:

Gold Plated,3U"- 50U" Available

Termination:

Crimping

Color:

Transparent

Operating Temperature:

-10°C To +60°C

Packaging Details:

50pcs/box

Highlight:

Cat6 UTP RJ45 plug

Cat6 modular plug for Ethernet

UTP RJ45 connector Cat6

Product Description

Cat6 UTP RJ45 Modular Plug Overview

The Cat6 UTP RJ45 Modular Plug is engineered for terminating Category 6 unshielded twisted-pair Ethernet cables in structured cabling systems. Built on an 8-position, 8-contact (8P8C) modular design, the connector delivers reliable electrical connections for Ethernet patch cords and network cable assemblies. Its transparent housing allows easy visual inspection of conductor positioning, while gold-plated contacts help ensure stable signal transmission and corrosion resistance.

The RJ45 plug is suitable for Cat6 network applications supporting frequencies up to 250MHz and Gigabit Ethernet connectivity.

Applications

Structured cabling systems
Enterprise LAN installations
Data center network cabling
Network equipment connections
Ethernet patch cable assembly
Commercial and residential network installations

General Specifications

Compliance	Conforms to TIA/EIA 568B.2, ISO/IEC 11801:2002 CLASS E & ANSI/TIA/EIA 568B.2-1
Product Type	RJ45 Modular Plug
Design	Standard
Connector Type	RJ45 8P8C
Category	Category 6
Wire	22–26 AWG
Housing	PC
RJ45 Contact	Gold plated 3U"–50U" available
Voltage Rating	125 VAC RMS
Current Rating	1.5 AMP
Contact Resistance	100 milliohms max
Insulation Resistance	1000 megohms min @ 500 VDC
Dielectric Strength	750 VAC RMS 60Hz, 1 min
RJ45 Jack Life	750 times min
IDC Life	200 times min
Storage Temperature	-40~70℃
Operation Temperature	-10~60℃

Download Datasheet

Unshielded Cat6 RJ45 Modular Plug

Ordering Information

Part No.	Description
GC-RJ45-U63	Cat6 UTP RJ45 Modular Plug
Customized	Available upon request

If you have any further questions, please feel free to contact us at sales@gorelink.com.
