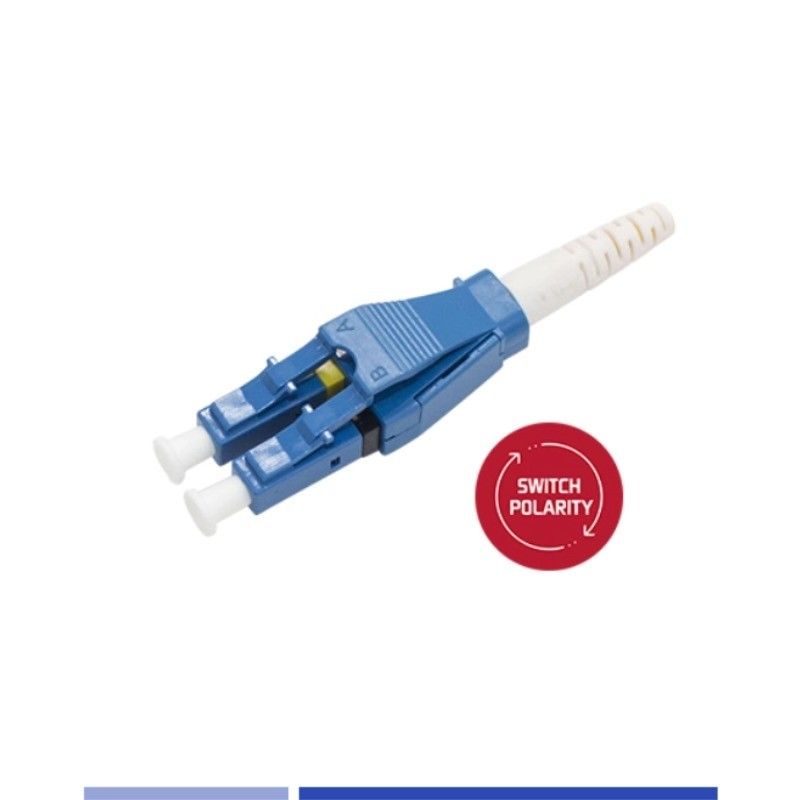

Polarity Switchable Uniboot LC/UPC Singlemode Duplex 3.0mm Fiber Optic Connector
Gorelink manufacture various kinds of Single Mode and Multimode LC Uniboot fiber optic connectors for fiber connecting applications. Each fiber optic connector is functionally tested before shipping and is covered by a lifetime warranty.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
| Fiber Connector Type | LC/UPC | |
|
Body Style |
Polarity switchable Uniboot Duplex |
|
|
Fiber Mode |
Singlemode |
|
|
Hoursing/Boot Color |
Blue-White |
|
|
Compatible cable diameter |
3.0mm |
|
|
Flammability Rate |
UL94-V0 |
|
|
Compliant |
RoHS, Telcordia GR-326-CORE |
|
Optical Specification
|
Parameter |
Singlemode |
Multimode |
||
|
PC |
UPC |
APC |
UPC |
|
|
Insertion loss |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.25dB |
|
Return loss |
≥55dB |
≥55dB |
≥60dB |
/ |
|
Wavelength |
1310nm, 1550nm |
850nm, 1300nm |
||
|
Ferrule Concentricity |
≤1um |
≤4um |
||
|
Operating Temperature |
-20°C to +70°C |
|||
|
Storage Temperature |
-40°C to +85°C |
|||
Check the ordering information to find what you are looking for.
Please Contact Us freely if you need any help.
Download Datasheet
| Switchable Uniboot LC Fiber Optic Connectors-SM Series |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
G519-G32 |
Polarity switchable Uniboot LC/UPC Singlemode Duplex 3.0mm Fiber Optic Connector |
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
