| Brand Name: | GoreLink |
| Model Number: | G519-731 |
| MOQ: | 1pc |
| Delivery Time: | 1-3 Working days |
| Payment Terms: | T/T, Western Union,Paypal, D/P |

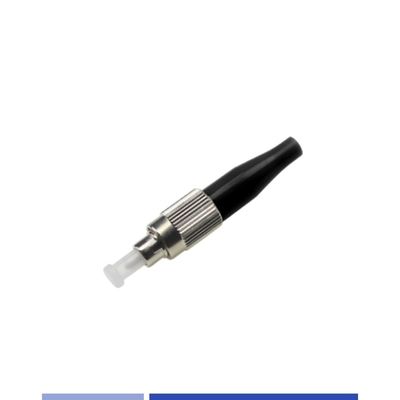

FC/UPC Singlemode Simplex 3.0mm Fiber Optic Connector
Gorelink manufacture various kinds of Single Mode and Multimode fiber optic connectors for fiber connecting applications. Each fiber optic connector is functionally tested before shipping and is covered by a lifetime warranty.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Fiber Connector Type |
FC/UPC |
|
|
Body Style |
Simplex |
|
|
Fiber Mode |
Singlemode |
|
|
Hoursing/Boot Color |
Metal-Black |
|
|
Compatible cable diameter |
3.0mm |
|
|
Flammability Rate |
UL94-V0 |
|
|
Compliant |
RoHS, Telcordia GR-326-CORE |
|
Optical Specification
|
Parameter |
Singlemode |
Multimode |
||
|
PC |
UPC |
APC |
UPC |
|
|
Insertion loss |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.25dB |
|
Return loss |
≥55dB |
≥55dB |
≥60dB |
/ |
|
Wavelength |
1310nm, 1550nm |
850nm, 1300nm |
||
|
Ferrule Concentricity |
≤1um |
≤4um |
||
|
Operating Temperature |
-20°C to +70°C |
|||
|
Storage Temperature |
-40°C to +85°C |
|||
Ordering Information
|
PART NO. |
DESCRIPTION |
|
G519-731 |
FC/UPC Singlemode Simplex 3.0mm Fiber Optic Connector |
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
