Multimode OM3 Indoor/Outdoor Fiber Optic Cable LSZH 24 Fiber Optic Cable CCTV Networks

Name: Multimode OM3 Indoor/Outdoor Fiber Optic Cable LSZH 24 Fiber Optic Cable CCTV Networks
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-IO-324L
Availability: InStock

Brand Name:	GoreLink
Model Number:	GL-IO-324L
MOQ:	1000m
Delivery Time:	As per the order quantity
Payment Terms:	T/T,Paypal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ISO,RoHS,REACH

Features:

Indoor/Outdoor Cable

Product Name:

Indoor/Outdoor Fiber Cable

Fiber Count:

24 Fiber

Fiber Type:

Multimode OM3

Cable Design:

Central Loose Tube

Jacket Material:

LSZH

Color:

Black

Part Number:

GL-IO-324L

Applications:

Indoor/Outdoor Application

Core Count:

Up To 24 Cores

Packaging Details:

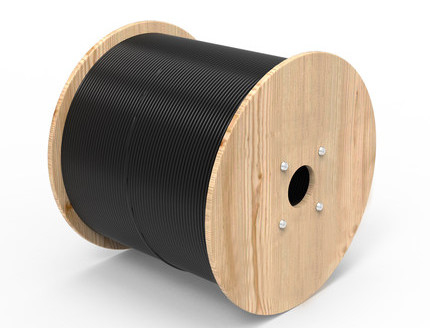

Wooden Drum/Spool+Carton

Highlight:

Multimode OM3 Indoor Fiber Optic Cable

CCTV Networks Indoor Fiber Optic Cable

Multimode OM3 24 Fiber Optic Cable

Product Description

Indoor/outdoor fiber optic cable are designed for installations where the cable needs to pass through both indoor and outdoor environments. This Indoor/outdoor Fiber Optic Cable offers a reliable, efficient, cost-effective solution for modern communication infrastructure needs. Their ability to seamlessly transition between indoor and outdoor environments makes them a versatile choice for various applications, from commercial buildings and data centers to industrial complexes and telecom networks. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. It is lightweight and reduced-diameter. Its durable design allows it to withstand installations and operations.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Mode	Multimode OM3
Fiber Count	24 Core

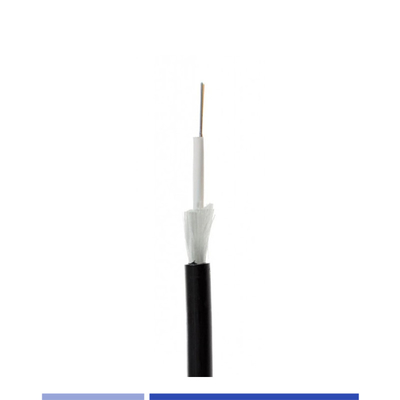

Cable structure	Central loose tube
Strength Member	Glass Yarn
Cable Diameter	6.0mm
Cable Jacket	LSZH
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	850nm≤3.0dB 1300nm ≤1.0dB
Core diameter(um)	50±2.5
Cladding diameter(um)	125±1.0
Wavelength	850nm / 1300nm
Operating Temperature	-20~75deg
Storage Temperature	-40~80deg

Multimode OM3 Indoor/Outdoor Fiber Optic Cable LSZH 24 Fiber Optic Cable CCTV Networks 0

Ordering Information

PART NO.	DESCRIPTION
GL-IO-302L	Indoor/Outdoor Fiber Optic Cable, 2 Fiber, MM OM3,LSZH,Black
GL-IO-304L	Indoor/Outdoor Fiber Optic Cable, 4 Fiber, MM OM3,LSZH,Black
GL-IO-306L	Indoor/Outdoor Fiber Optic Cable, 6 Fiber, MM OM3,LSZH,Black
GL-IO-308L	Indoor/Outdoor Fiber Optic Cable, 8 Fiber, MM OM3,LSZH,Black
GL-IO-312L	Indoor/Outdoor Fiber Optic Cable, 12 Fiber,MM OM3,LSZH,Black
GL-IO-324L	Indoor/Outdoor Fiber Optic Cable, 24 Fiber,MM OM3,LSZH,Black
* Customized
